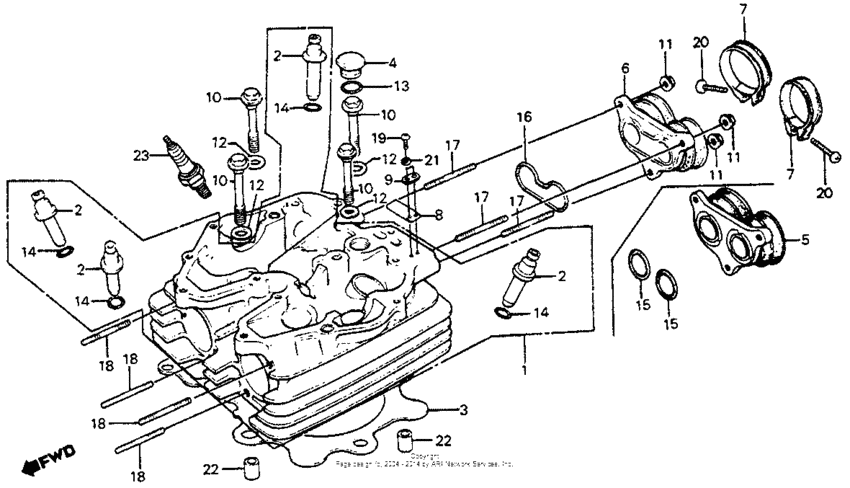

Cylinder head 83-84 Diagram Honda XR350
- Year
- 1983
- Model code
- XR350R A
- Sales region
- USA
- Frame
- JH2NE010*DM000023 - JH2NE010*DM005646
- Engine Capacity
- 350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12200-KF0-405
Cylinder head
|
12200-KF0-405 |
— | ||
|
2
|
2
12231-KF0-305 Guide, valve |
12231-KF0-305 |
from US $19.72 |
||
|
3
|
3
12251-KAS-901
Gasket, cyl hd
|
12251-KAS-901 |
— | ||
|
4
|
4
12345-KF0-000
Cap, cyl hd hole
|
12345-KF0-000 |
— | ||
|
5
|
5
16211-KF0-000
Insulator,carbure
|
16211-KF0-000 |
— | ||
|
7
|
7
16223-KS5-000 Band, insulator |
16223-KS5-000 |
from US $8.14 |
||
|
8
|
8
16300-KF0-000
Valve,reed
|
16300-KF0-000 |
— | ||
|
9
|
9
16301-KF0-000
Washer,reed valve
|
16301-KF0-000 |
— | ||
|
10
|
10
90085-MG3-000 Bolt, flange (10x66) |
90085-MG3-000 |
from US $10.95 |
||
|
11
|
11
94050-06070 Nut |
94050-06070 |
from US $0.52 |
||
|
12
|
12
90410-KR0-000 Washer (10mm) |
90410-KR0-000 |
from US $3.26 |
||
|
13
|
13
91301-MC7-003 O-ring (15.8x2.5) |
91301-MC7-003 |
from US $4.28 |
||
|
14
|
14
91301-200-000 O-ring (10x1.6) |
91301-200-000 |
from US $2.37 |
||
|
15
|
15
91301-401-000 O-ring (29.5x3) |
91301-401-000 |
from US $4.22 |
||
|
17
|
17
92900-06016-0B BoltSTUD, 6X16 |
92900-06016-0B |
from US $0.59 |
||
|
18
|
18
92700-08040-0B BoltSTUD, 8X40 |
92700-08040-0B |
from US $0.74 |
||
|
19
|
19
93500-030-080-A ScrewPAN, 3X8 |
93500-030-080-A |
from US $0.37 |
||
|
20
|
20
93500-050-200-A ScrewPAN, 5X20 |
93500-050-200-A |
from US $0.37 |
||
|
21
|
21
94111-03000 WasherSPRING, 3MM |
94111-03000 |
from US $0.38 |
||
|
22
|
22
94301-12200 Dowel pin12X20 |
94301-12200 |
from US $1.04 |
||
|
23
|
23
98069-57916 Spark plug (dpr7ea-9)(Optional). |
98069-57916 |
from US $3.58 |
||
|
23
|
23
9806957926 S/plg (x22epr-u9)(Optional). |
9806957926 |
from US $3.71 |
||
|
23
|
23
98069-58916 Spark plug (NGK dpr8ea-9) |
98069-58916 |
from US $3.49 |
||
|
23
|
23
98069-58926 Spark plug (Denso x24epr-u9) |
98069-58926 |
from US $3.71 |
||
|
23
|
23
9806959916 S/plg (dpr9ea-9)(Optional). |
9806959916 |
from US $4.08 |
||
|
23
|
23
9806959926 S/plg (x27epr-u9)(Optional). |
9806959926 |
from US $3.71 |
