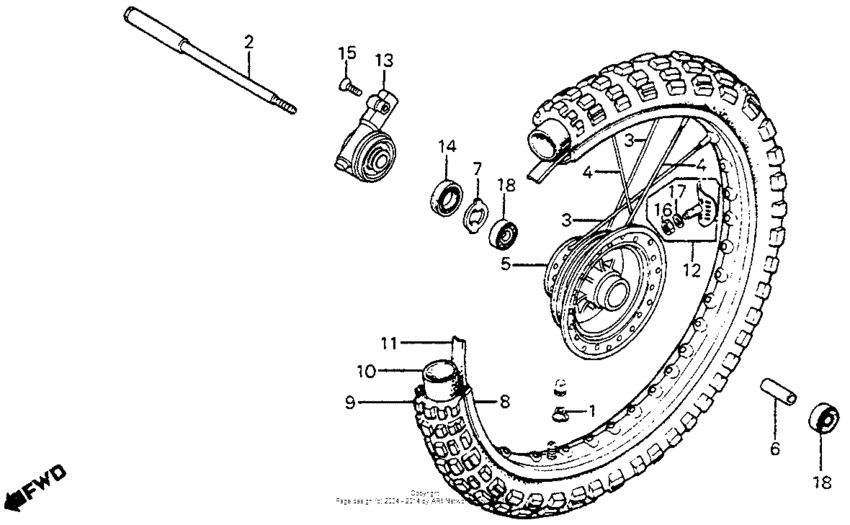

Front wheel 83 Diagram Honda XR350
- Year
- 1983
- Model code
- XR350R A
- Sales region
- USA
- Frame
- JH2NE010*DM000023 - JH2NE010*DM005646
- Engine Capacity
- 350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42714-KA3-710 Cap, valve |
42714-KA3-710 |
from US $6.96 |
||
|
2
|
2
44301-KBR-000 Axle,fr.wheel |
44301-KBR-000 |
from US $33.05 |
||
|
3
|
3
446A0-KA3-710
Spoke set a,fr.
|
446A0-KA3-710 |
— | ||
|
4
|
4
446B0-KA3-710
Spoke set b,fr.
|
446B0-KA3-710 |
— | ||
|
5
|
5
44601-KA3-710
Hub,fr.wheel
|
44601-KA3-710 |
— | ||
|
6
|
6
44620-KA3-710
Collar,fr.wheel
|
44620-KA3-710 |
— | ||
|
7
|
7
44680-MA0-000 Retainer, gear box |
44680-MA0-000 |
from US $4.07 |
||
|
8
|
8
44701-KA3-711
Rim, fr. wheel
|
44701-KA3-711 |
— | ||
|
9
|
9
44711-KF0-003
Tire, fr. (90/80-21)
|
44711-KF0-003 |
— | ||
|
10
|
10
44712-446-631
Tube (2.75/3.00-21)
|
44712-446-631 |
— | ||
|
11
|
11
44713-329-003
*44713-mg7-003
|
44713-329-003 |
— | ||
|
12
|
12
44715-MA0-770 Stopper, bead (1.60) |
44715-MA0-770 |
from US $29.32 |
||
|
13
|
13
44800-KF0-023 Box assy |
44800-KF0-023 |
from US $103.36 |
||
|
14
|
14
91258-410-013 Dust seal (40x50x5) |
91258-410-013 |
from US $3.60 |
||
|
15
|
15
93700-050200A Screw, oval (5x20) |
93700-050200A |
from US $0.37 |
||
|
16
|
16
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
17
|
17
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
18
|
18
96140-6202010 Bearing (6202u) |
96140-6202010 |
from US $6.51 |
