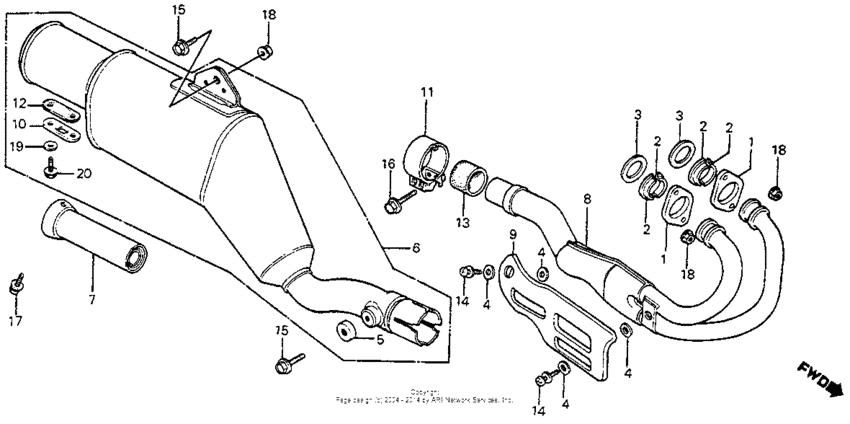

Muffler 83-84 Diagram Honda XR350
- Year
- 1983
- Model code
- XR350R A
- Sales region
- USA
- Frame
- JH2NE010*DM000023 - JH2NE010*DM005646
- Engine Capacity
- 350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18231-KF0-000
Joint,ex.pipe
|
18231-KF0-000 |
— | ||
|
2
|
2
18233-435-000 Collar,ex.pipe |
18233-435-000 |
from US $6.36 |
||
|
3
|
3
18291-MN5-650 Gasket, ex. pipe |
18291-MN5-650 |
from US $4.88 |
||
|
4
|
4
18292-MM9-740 Gasket, protector |
18292-MM9-740 |
from US $4.20 |
||
|
5
|
5
18295-KZ1-670
Gasket b, muffler
|
18295-KZ1-670 |
— | ||
| replacement | |||||
|
5
|
5
18295-KV6-920
Packing,muff b
|
18295-KV6-920 |
— | ||
|
6
|
6
18310-KF0-000
Muffler comp.
|
18310-KF0-000 |
— | ||
|
7
|
7
18311-MA0-010 Pipe, tail |
18311-MA0-010 |
from US $34 |
||
|
8
|
8
18320-KF0-000
Pipe,ex.
|
18320-KF0-000 |
— | ||
|
9
|
9
18325-KF0-000
Protr.,ex.pipe
|
18325-KF0-000 |
— | ||
|
10
|
10
18373-429-010 Lid, muffler |
18373-429-010 |
from US $5 |
||
|
11
|
11
18374-MG5-670
Band, r. muffler
|
18374-MG5-670 |
— | ||
|
12
|
12
18374-MN1-880 Gasket, muffler lid |
18374-MN1-880 |
from US $4.44 |
||
|
13
|
13
18391-438-306 Gasket, muffler |
18391-438-306 |
from US $10.95 |
||
|
14
|
14
90136-MC7-000 Screw-washer (6x12) |
90136-MC7-000 |
from US $4 |
||
|
15
|
15
96300-0801600 Bolt, flange (8x16) |
96300-0801600 |
from US $0.74 |
||
|
16
|
16
90216-KF0-000
Bolt, flange (8x32)
|
90216-KF0-000 |
— | ||
|
17
|
17
93891-060-120-7 Screw-washer6X12 |
93891-060-120-7 |
from US $0.52 |
||
|
18
|
18
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
19
|
19
94101-06700 WasherPLAIN, 6MM |
94101-06700 |
from US $0.37 |
||
|
20
|
20
96001-060-120-7 BoltFLANGE, 6X12 |
96001-060-120-7 |
from US $0.59 |
||
