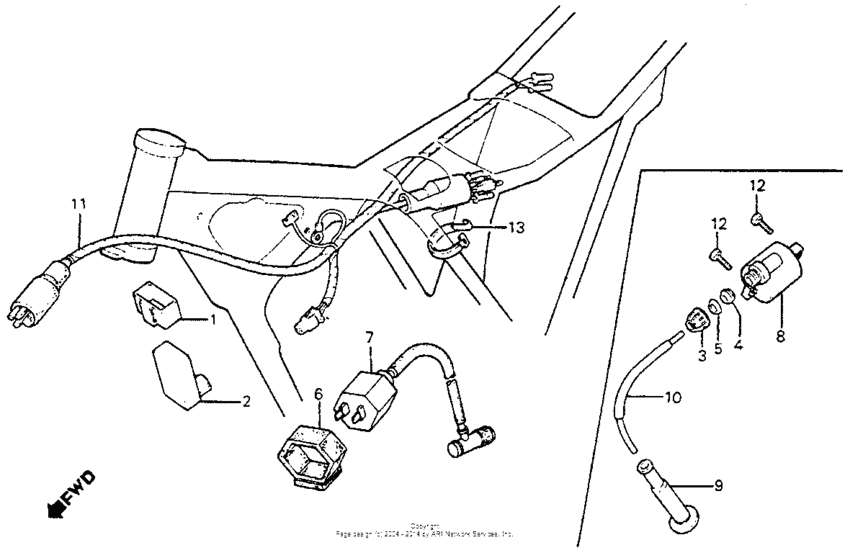

Wire harness + c.d.i. unit + ignition coil 83-84 Diagram Honda XR350
- Year
- 1983
- Model code
- XR350R A
- Sales region
- USA
- Frame
- JH2NE010*DM000023 - JH2NE010*DM005646
- Engine Capacity
- 350
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30401-KF0-000 Rubber |
30401-KF0-000 |
from US $5.42 |
||
| replacement | |||||
|
1
|
1
30401-KF0-010 CUSHION |
30401-KF0-010 |
from US $5.92 |
||
|
2
|
2
30410-KF0-003
C.d.i.unit comp.
|
30410-KF0-003 |
— | ||
|
3
|
3
30501-428-003 Cap, screw |
30501-428-003 |
US $4.74 |
||
|
4
|
4
30502-428-003 Seal, rubber |
30502-428-003 |
US $2.59 |
||
|
5
|
5
30503-428-003 Washer, cap |
30503-428-003 |
US $2.66 |
||
|
8
|
8
30510-167-003
Coil, ignition
|
30510-167-003 |
— | ||
|
9
|
9
30700-MK4-611 Cap assy. |
30700-MK4-611 |
from US $18.90 |
||
|
10
|
10
30750-MA0-P00
Wire, ignition
|
30750-MA0-P00 |
— | ||
|
11
|
11
32100-KF0-000
Harness,wire
|
32100-KF0-000 |
— | ||
|
12
|
12
92101-05016-0A Bolt, hex., 5x16 |
92101-05016-0A |
from US $0.37 |
||
|
13
|
13
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.73 |
||
