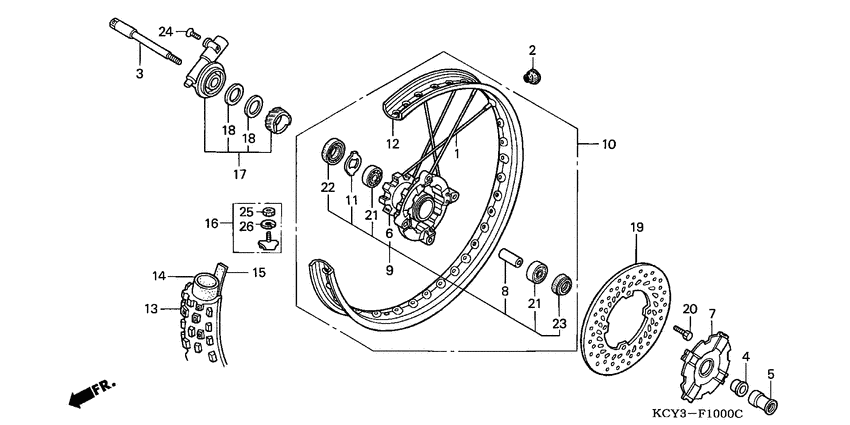

Front wheel Diagram Honda XR400
- Year
- 1996
- Model code
- XR400RT
- Sales region
- Canada
- Frame
- JH2NE032*TM000001 - JH2NE032*TM000210
- Engine Capacity
- 400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06440-KCY-670 Spoke set (e10x249) |
06440-KCY-670 |
from US $4.59 |
||
|
2
|
2
42714-KA3-710 Cap, valve |
42714-KA3-710 |
from US $6.96 |
||
|
3
|
3
44301-KAE-870 Axle, fr. wheel |
44301-KAE-870 |
from US $43.11 |
||
|
4
|
4
44311-KAE-870 Collar, fr. wheel |
44311-KAE-870 |
from US $10.51 |
||
|
5
|
5
44320-KCY-670
Sleeve, fr.
|
44320-KCY-670 |
— | ||
|
6
|
6
44601-KAE-870
Hub, fr. wheel
|
44601-KAE-870 |
— | ||
|
7
|
7
44610-KW3-010ZB Cover, fr. hub *nh1* |
44610-KW3-010ZB |
from US $13.62 |
||
|
8
|
8
44620-KAE-870 Collar, fr |
44620-KAE-870 |
from US $7.70 |
||
|
10
|
10
44650-KCY-670
Wheel sub-assy., fr.
|
44650-KCY-670 |
— | ||
|
11
|
11
44680-MA0-000 Retainer, gear box |
44680-MA0-000 |
from US $4.59 |
||
|
12
|
12
44701-MN1-671
Rim, fr. wheel
|
44701-MN1-671 |
— | ||
|
13
|
13
44711-ML3-911
Tire (80/100-21)
|
44711-ML3-911 |
— | ||
|
14
|
14
44712-KS6-641
Tube (80/100-21)
|
44712-KS6-641 |
— | ||
| replacement | |||||
|
14
|
14
44712-446-631
Tube (2.75/3.00-21)
|
44712-446-631 |
— | ||
|
15
|
15
44713-KS6-641 Flap, tire |
44713-KS6-641 |
US $8.89 |
||
|
16
|
16
44715-MA0-770 Stopper, bead (1.60) |
44715-MA0-770 |
from US $40.39 |
||
|
17
|
17
44800-MY6-771 Box assy |
44800-MY6-771 |
from US $55.62 |
||
|
18
|
18
44809-402-000 Washer |
44809-402-000 |
from US $2.89 |
||
|
19
|
19
45351-KZ1-771
Disk, fr. brake
|
45351-KZ1-771 |
— | ||
|
20
|
20
90105-KAE-870 Bolt, disk (6x17) |
90105-KAE-870 |
from US $1.92 |
||
|
21
|
21
91065-KA3-832 Bearing (6003-sh2) |
91065-KA3-832 |
from US $13.74 |
||
|
22
|
22
91258-410-006 Dust seal (40x50x5) |
91258-410-006 |
US $9.91 |
||
| replacement | |||||
|
22
|
22
91258-410-013 Dust seal (40x50x5) |
91258-410-013 |
from US $8.73 |
||
|
22
|
22
91258-410-013 Dust seal (40x50x5) |
91258-410-013 |
from US $8.73 |
||
|
23
|
23
91259-KS6-831 Dust seal (24x37x7) |
91259-KS6-831 |
from US $5.35 |
||
|
24
|
24
93700-050200G Screw, oval (5x20) |
93700-050200G |
from US $0.37 |
||
|
25
|
25
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.44 |
||
|
26
|
26
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
