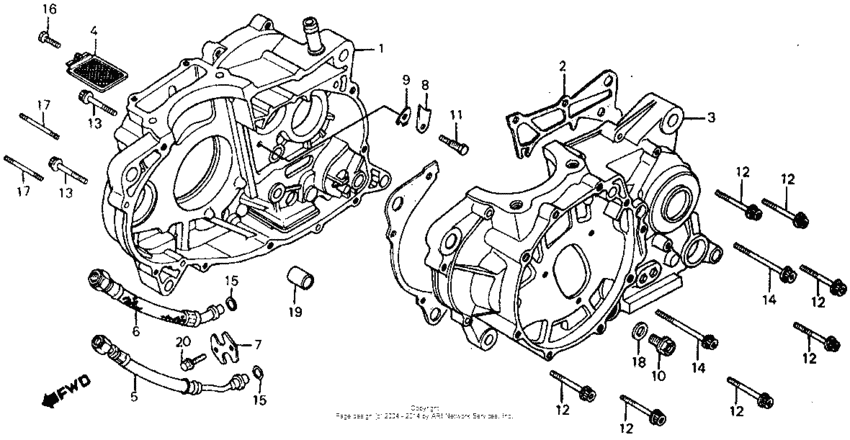

Crankcase 83-84 Diagram Honda XR500
- Year
- 1983
- Model code
- XR500R A
- Sales region
- USA
- Frame
- JH2PE030*DM000022 - JH2PE030*DM006138
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-MG3-305
Crankcase, r.
|
11100-MG3-305 |
— | ||
|
2
|
2
11191-MG3-306
Gasket, crankcase
|
11191-MG3-306 |
— | ||
|
3
|
3
11200-MG3-020
Crankcase, l.
|
11200-MG3-020 |
— | ||
|
4
|
4
15421-MG3-000 Screen,oil filter |
15421-MG3-000 |
from US $11.25 |
||
|
4
|
4
15421-MN1-671 Screen, oil filter |
15421-MN1-671 |
from US $11.99 |
||
|
5
|
5
15610-MG3-003
Hose,oil(a)
|
15610-MG3-003 |
— | ||
|
6
|
6
15620-MG3-003
Hose,oil(b)
|
15620-MG3-003 |
— | ||
|
7
|
7
15630-MG3-000
Oil hose set pl.
|
15630-MG3-000 |
— | ||
|
8
|
8
23521-MG3-000 Plate |
23521-MG3-000 |
from US $4.16 |
||
|
9
|
9
23523-MG3-000
Washer 8mm lock
|
23523-MG3-000 |
— | ||
|
10
|
10
90015-KA3-711 Bolt, special (12mm) |
90015-KA3-711 |
from US $5.92 |
||
|
11
|
11
90088-MG3-000 Bolt, special (8mm) |
90088-MG3-000 |
from US $4 |
||
|
12
|
12
90091-MG3-000 Bolt (6x32) |
90091-MG3-000 |
from US $3.40 |
||
|
13
|
13
90093-MG3-000 Bolt (6x45) |
90093-MG3-000 |
from US $3.85 |
||
|
14
|
14
90094-MG3-000
Bolt,flg.soc,6x50
|
90094-MG3-000 |
— | ||
|
15
|
15
91305-422-000 O-ring (9.8x2.4) |
91305-422-000 |
from US $3.70 |
||
|
16
|
16
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
16
|
16
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
16
|
16
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
17
|
17
92900-06025-0E Bolt, stud (6x25) |
92900-06025-0E |
from US $0.59 |
||
|
18
|
18
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
19
|
19
94301-14200 Dowel pin14X20 |
94301-14200 |
from US $1.04 |
||
|
20
|
20
96001-0601607 Bolt, flange, 6x16 |
96001-0601607 |
from US $0.59 |
||
