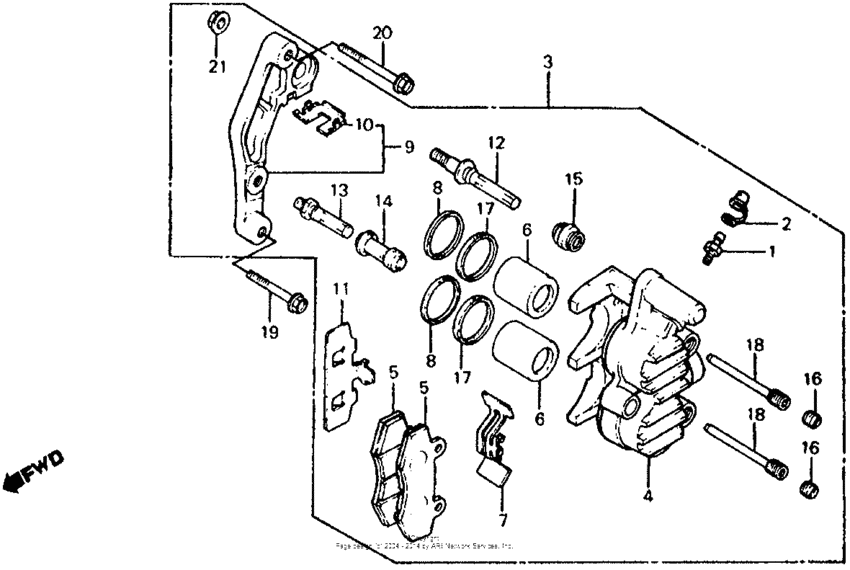

Front caliper 83-84 Diagram Honda XR500
- Year
- 1983
- Model code
- XR500R A
- Sales region
- USA
- Frame
- JH2PE030*DM000022 - JH2PE030*DM006138
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43352-568-003 SCREW, BLEEDER (NISSIN) |
43352-568-003 |
from US $4.22 |
||
|
2
|
2
43353-461-771 CapBLEEDER |
43353-461-771 |
from US $3.70 |
||
|
3
|
3
45100-MG3-016
Caliper assy.,fr.
|
45100-MG3-016 |
— | ||
|
4
|
4
45101-MG3-006
Caliper comp.
|
45101-MG3-006 |
— | ||
|
5
|
5
45105-MG3-006 Pad comp |
45105-MG3-006 |
US $26.83 |
||
|
6
|
6
45107-MG3-016 Piston |
45107-MG3-016 |
from US $20.01 |
||
|
7
|
7
45108-GE2-006 Spring, pad |
45108-GE2-006 |
from US $7.10 |
||
|
8
|
8
45109-GE2-006 Dust seal |
45109-GE2-006 |
from US $4 |
||
|
9
|
9
45110-MG3-006
Bracket, l. fr.
|
45110-MG3-006 |
— | ||
|
10
|
10
45112-MG3-006 Retainer |
45112-MG3-006 |
from US $4.11 |
||
|
11
|
11
45116-MG3-006
Shim
|
45116-MG3-006 |
— | ||
|
12
|
12
45131-MG3-006
Bolt a, pin
|
45131-MG3-006 |
— | ||
|
13
|
13
45131-166-016 Pin, bolt |
45131-166-016 |
from US $4.88 |
||
|
14
|
14
45132-166-016 Bush, pin |
45132-166-016 |
from US $1.40 |
||
|
15
|
15
45133-MA3-006 Boot b |
45133-MA3-006 |
from US $2.54 |
||
|
16
|
16
45203-MG3-016 Plug, pin |
45203-MG3-016 |
from US $2.23 |
||
|
17
|
17
45209-GE2-006 Seal, piston |
45209-GE2-006 |
from US $4 |
||
|
18
|
18
45215-GE2-016 Pin, hanger |
45215-GE2-016 |
from US $6.81 |
||
|
19
|
19
90131-MG3-000 Bolt, flange (8x40) |
90131-MG3-000 |
US $2.45 |
||
| replacement | |||||
|
19
|
19
96400-0804000 Bolt, flange (8x40) |
96400-0804000 |
from US $0.81 |
||
|
20
|
20
95801-0805000 Bolt, flange, 8x50 |
95801-0805000 |
from US $0.81 |
||
|
21
|
21
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
