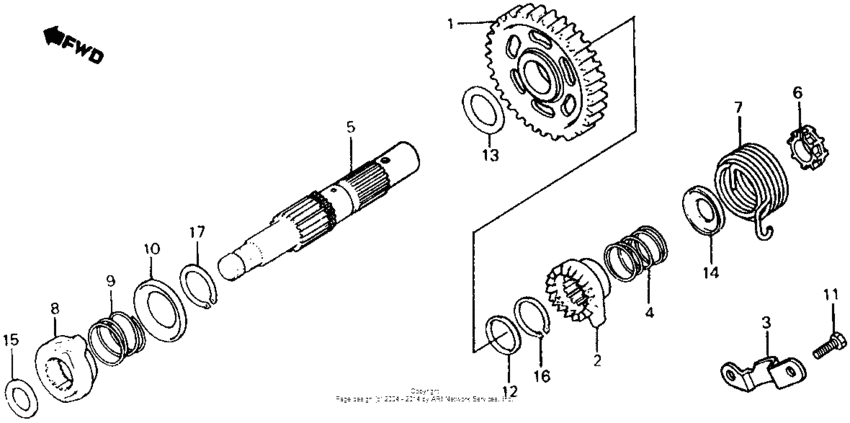

Kick starter spindle 83-84 Diagram Honda XR500
- Year
- 1983
- Model code
- XR500R A
- Sales region
- USA
- Frame
- JH2PE030*DM000022 - JH2PE030*DM006138
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28211-MG3-000
Pinion,only kick
|
28211-MG3-000 |
— | ||
|
2
|
2
28213-KF0-010 Ratchet |
28213-KF0-010 |
US $41.26 |
||
|
3
|
3
28215-MG3-000
Pl,kick stopper
|
28215-MG3-000 |
— | ||
|
4
|
4
28223-KF0-004
Spring
|
28223-KF0-004 |
— | ||
|
5
|
5
28250-MG3-000
Spindle
|
28250-MG3-000 |
— | ||
|
6
|
6
28255-MG3-010 Collar, kick starter |
28255-MG3-010 |
from US $6.07 |
||
|
7
|
7
28261-MK2-000 Spring, kick starter |
28261-MK2-000 |
from US $13.02 |
||
|
8
|
8
28272-MG3-003
Cam,kick shaft
|
28272-MG3-003 |
— | ||
|
9
|
9
28283-428-000
Spring, cam reset
|
28283-428-000 |
— | ||
|
10
|
10
28284-428-000 Seat |
28284-428-000 |
US $3.47 |
||
|
11
|
11
90131-MA7-000 Bolt, socket (8x20) |
90131-MA7-000 |
from US $4.16 |
||
|
12
|
12
90453-428-000 Washer, thrust, 22mm |
90453-428-000 |
US $4.44 |
||
|
13
|
13
90456-323-000 Washer, thrust, 22mm |
90456-323-000 |
US $3.85 |
||
|
14
|
14
90501-KF0-000 Washer |
90501-KF0-000 |
from US $4 |
||
|
15
|
15
90454-428-000 Washer, thrust, 20mm |
90454-428-000 |
from US $2.89 |
||
|
16
|
16
90601-329-000 Circlip (22mm) |
90601-329-000 |
from US $3.18 |
||
|
17
|
17
9451024000 Circlip (24mm) |
9451024000 |
US $0.59 |
