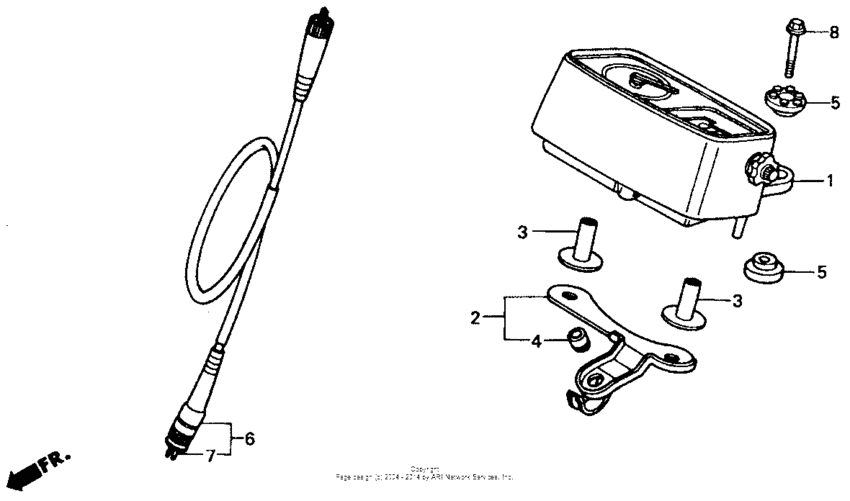

Speedometer 87 Diagram Honda XR600
- Year
- 1987
- Model code
- XR600R A
- Sales region
- USA
- Frame
- JH2PE040*HK200003 - JH2PE040*HK203930
- Engine Capacity
- 600
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37200-KT0-672
Speedometer assy
|
37200-KT0-672 |
— | ||
|
2
|
2
37206-MK2-681
Sub-stay
|
37206-MK2-681 |
— | ||
|
3
|
3
37208-MK2-680
Collar,6.3x26
|
37208-MK2-680 |
— | ||
|
4
|
4
37209-KT0-671
Rubber, speedometer
|
37209-KT0-671 |
— | ||
|
5
|
5
37242-KT0-670
Rubber
|
37242-KT0-670 |
— | ||
|
6
|
6
44830-MG3-010 Cable, speedometer |
44830-MG3-010 |
from US $26.79 |
||
|
7
|
7
44831-GBJ-000 Cable (inner) |
44831-GBJ-000 |
from US $7.25 |
||
|
8
|
8
96001-0605007 Bolt, flange (6x50) |
96001-0605007 |
from US $0.81 |
