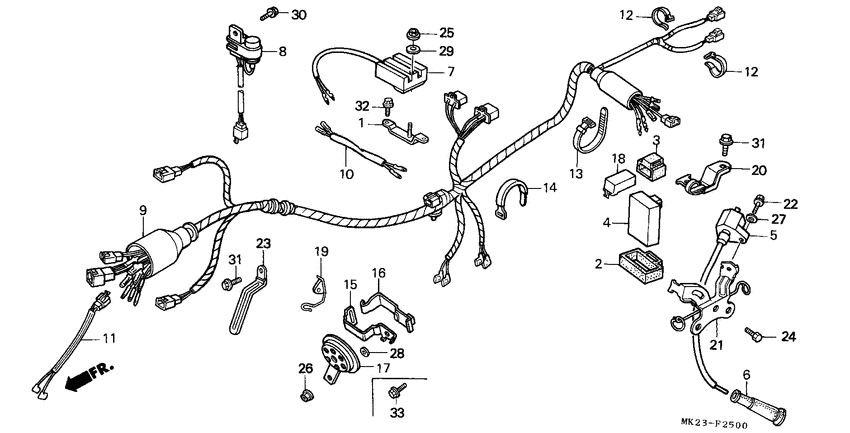

Wire harness Diagram Honda XR600
- Year
- 1985
- Model code
- XR600RF
- Sales region
- Canada
- Frame
- JH2PE040*FK000234 - JH2PE040*FK003183
- Engine Capacity
- 600
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
17227-MK2-671
Stay,regulator
|
17227-MK2-671 |
— | ||
2
|
2
30401-KK0-770 Rubber |
30401-KK0-770 |
US $4.79 |
||
replacement | |||||
2
|
2
30401-KT1-670 Rubber |
30401-KT1-670 |
from US $4.44 |
||
4
|
4
30410-MK2-671
Unit comp,cdi
|
30410-MK2-671 |
— | ||
5
|
5
30510-KN5-670 Coil comp.,igniti |
30510-KN5-670 |
from US $62.34 |
||
replacement | |||||
5
|
5
30510-GR2-405 Coil, ignition |
30510-GR2-405 |
from US $66.37 |
||
6
|
6
30700-KF0-153 Cap,noise suppess |
30700-KF0-153 |
from US $15.50 |
||
replacement | |||||
6
|
6
30700-MK4-611 Cap assy. |
30700-MK4-611 |
from US $18.90 |
||
7
|
7
31400-KA2-641
Regulator
|
31400-KA2-641 |
— | ||
9
|
9
32100-MK2-670
Harness wire
|
32100-MK2-670 |
— | ||
13
|
13
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.76 |
||
19
|
19
45469-MG3-000
Guide,cable
|
45469-MG3-000 |
— | ||
21
|
21
50290-MK2-670
Guide,wire harnss
|
50290-MK2-670 |
— | ||
22
|
22
90189-MG3-000 Bolt,washer 5x20 |
90189-MG3-000 |
from US $2.59 |
||
23
|
23
91403-KN5-670
Clip, wire harness
|
91403-KN5-670 |
— | ||
25
|
25
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
31
|
31
96000-0601600 Bolt, flange, 6x16 |
96000-0601600 |
US $1 |
||
replacement | |||||
31
|
31
96001-060-160-0 BoltFLANGE, 6X16 |
96001-060-160-0 |
from US $0.62 |
||
32
|
32
96300-0602000 Bolt, flange (6x20) |
96300-0602000 |
from US $0.59 |
