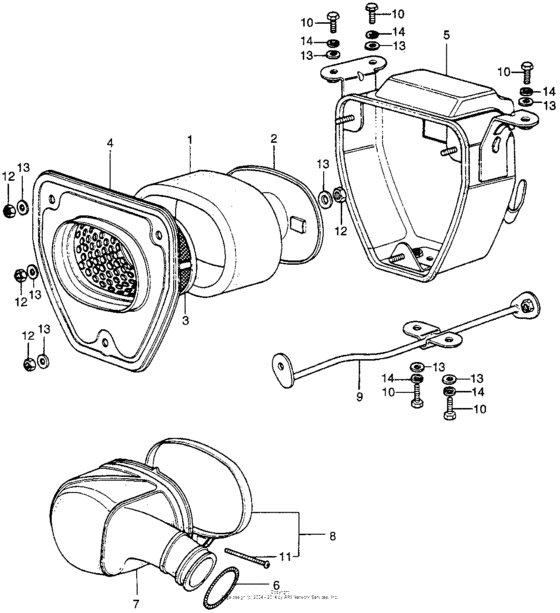

Air cleaner Diagram Honda XR75
- Model code
- XR75 A
- Sales region
- USA
- Frame
- XR751000001 - XR751024550
- Engine Capacity
- 75
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17211-107-020 Element |
17211-107-020 |
from US $8.58 |
||
|
2
|
2
17212-107-780
Cap,air cleaner
|
17212-107-780 |
— | ||
|
3
|
3
17214-107-780
Trap, flame
|
17214-107-780 |
— | ||
|
4
|
4
17220-116-670-B
Cover,cleanercase
|
17220-116-670-B |
— | ||
|
5
|
5
17230-116-671-B
Case,air cleaner
|
17230-116-671-B |
— | ||
|
6
|
6
17231-051-000 Band a,cleaner |
17231-051-000 |
from US $3.73 |
||
|
7
|
7
17253-116-670
Tube,air cleaner
|
17253-116-670 |
— | ||
|
8
|
8
17255-107-000
Band,cleaner
|
17255-107-000 |
— | ||
|
9
|
9
50156-116-670-B
Stay,side number
|
50156-116-670-B |
— | ||
|
10
|
10
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
10
|
10
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
10
|
10
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
11
|
11
93500-040-250-A Screw, pan, 4x25 |
93500-040-250-A |
from US $0.37 |
||
|
12
|
12
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
13
|
13
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
14
|
14
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
