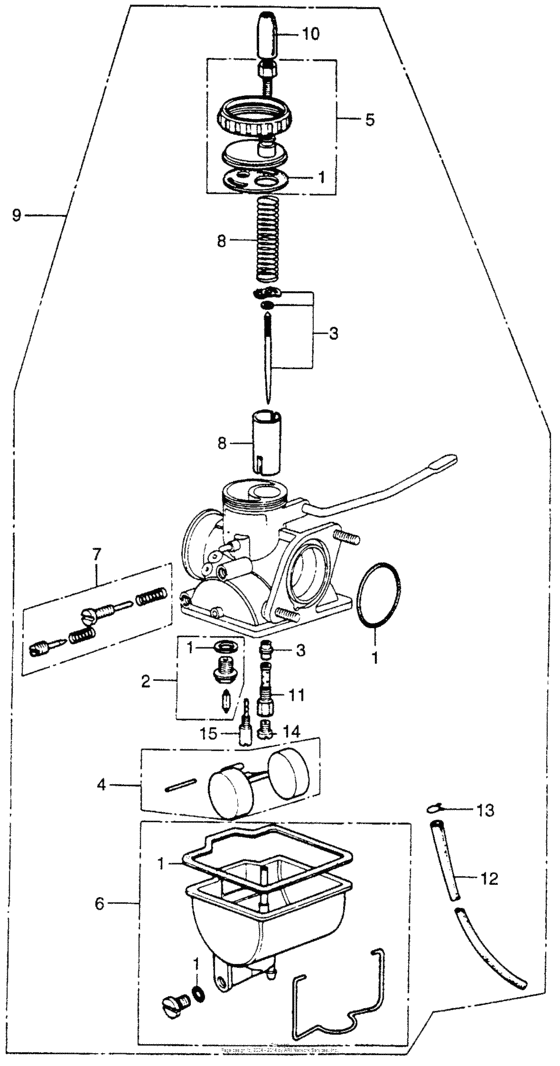

Carburetor Diagram Honda XR75
- Model code
- XR75 A
- Sales region
- USA
- Frame
- XR751000001 - XR751024550
- Engine Capacity
- 75
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-107-004
Packing set
|
16010-107-004 |
— | ||
|
2
|
2
16011-866-004 Valve set, float |
16011-866-004 |
US $14.99 |
||
|
3
|
3
16012-116-004
Needle set,jet
|
16012-116-004 |
— | ||
|
4
|
4
16013-116-700 Float set |
16013-116-700 |
from US $27.34 |
||
|
5
|
5
16014-116-700
Top set
|
16014-116-700 |
— | ||
|
6
|
6
16015-028-004
Chamber set,float
|
16015-028-004 |
— | ||
|
7
|
7
16016-046-004
Screw set a
|
16016-046-004 |
— | ||
|
8
|
8
16022-107-004
Valve set, throttle
|
16022-107-004 |
— | ||
|
9
|
9
16100-116-004
Carb,xr75k3(680a)
|
16100-116-004 |
— | ||
|
10
|
10
16118-166-004 Cap, cable sealing |
16118-166-004 |
from US $5.77 |
||
|
11
|
11
16165-116-004
Holder, needle jet
|
16165-116-004 |
— | ||
|
12
|
12
95001-350-0360M Bulk hose (3.5x3000) |
95001-350-0360M |
from US $14.50 |
||
|
13
|
13
95002-02070 ClipTUBE(B7) |
95002-02070 |
from US $0.44 |
||
|
14
|
14
99114-246-1000 Jet,main #100 |
99114-246-1000 |
US $2.96 |
||
|
15
|
15
99124-089-0380
Jet,slow #38
|
99124-089-0380 |
— |
