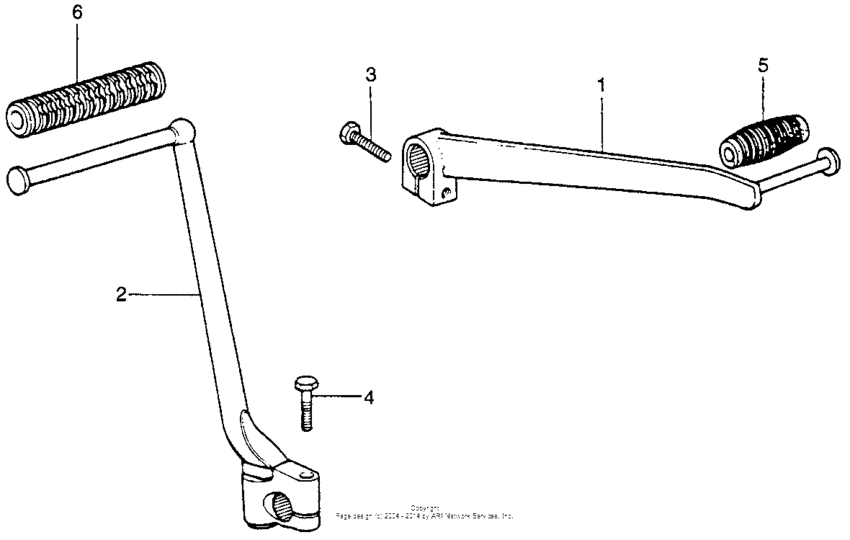

Change pedal + kick arm Diagram Honda XR75
- Model code
- XR75 A
- Sales region
- USA
- Frame
- XR751000001 - XR751024550
- Engine Capacity
- 75
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24701-107-700
Pedal,gear change
|
24701-107-700 |
— | ||
|
2
|
2
28300-195-000
Arm,kick starter
|
28300-195-000 |
— | ||
|
3
|
3
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
4
|
4
92101-06030-0A Bolt, hex., 6x30 |
92101-06030-0A |
from US $0.52 |
||
|
5
|
5
9501140000 Rubber, shift pedal |
9501140000 |
from US $0.74 |
||
|
6
|
6
9501151000 Rubber, kick starter |
9501151000 |
from US $1.04 |
