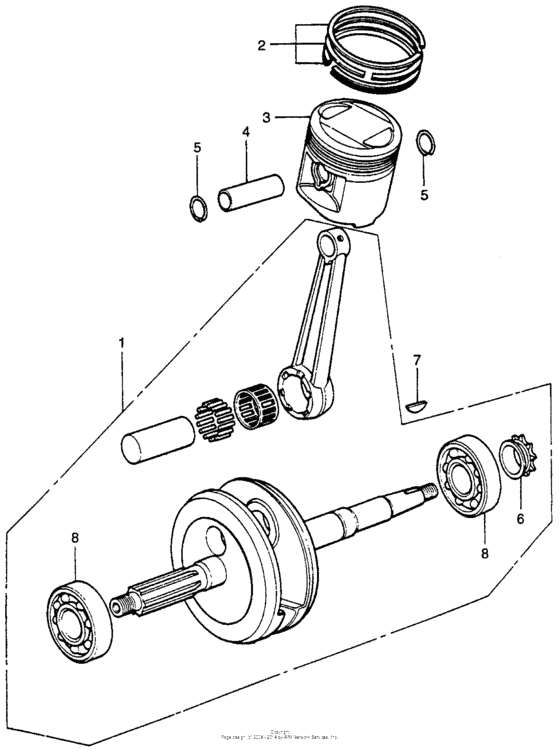

Crankshaft + piston Diagram Honda XR75
- Model code
- XR75 A
- Sales region
- USA
- Frame
- XR751000001 - XR751024550
- Engine Capacity
- 75
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13000-116-030
Crankshaft
|
13000-116-030 |
— | ||
|
2
|
2
13011-HB2-305
Ring set (std)
|
13011-HB2-305 |
— | ||
|
2
|
2
13012-HB2-305
Ring set (os) (0.25)
(Optional). |
13012-HB2-305 |
— | ||
|
2
|
2
13013-HB2-305
Ring set (os) (0.50)
(Optional). |
13013-HB2-305 |
— | ||
|
2
|
2
13014-HB2-305
Ring set (os) (0.75)
(Optional). |
13014-HB2-305 |
— | ||
|
2
|
2
13015-HB2-305
Ring set (1.00)
(Optional). |
13015-HB2-305 |
— | ||
|
2
|
2
13031-116-004
Ring set (os) (0.50)
(Optional). |
13031-116-004 |
— | ||
|
3
|
3
13101-116-010
Piston (std)
|
13101-116-010 |
— | ||
|
3
|
3
13102-116-010
Piston (os) (0.25)
(Optional). |
13102-116-010 |
— | ||
|
3
|
3
13103-116-010
Piston (os) (0.50)
(Optional). |
13103-116-010 |
— | ||
|
3
|
3
13104-116-010
Piston,0.75
(Optional). |
13104-116-010 |
— | ||
|
3
|
3
13105-116-010
Piston,1.00
(Optional). |
13105-116-010 |
— | ||
|
4
|
4
13111-GB0-910 Pin, piston |
13111-GB0-910 |
from US $6.81 |
||
|
5
|
5
94601-13000 Clip, piston pin, 13mm |
94601-13000 |
from US $0.44 |
||
|
6
|
6
14311-035-000 Sprocket (14t) |
14311-035-000 |
from US $11.25 |
||
|
6
|
6
14311-116-000
Sprocket,timing
|
14311-116-000 |
— | ||
|
7
|
7
90741-035-000 KEY |
90741-035-000 |
from US $3.77 |
||
|
8
|
8
91002-KY4-901 Bearing (63/22) |
91002-KY4-901 |
from US $29.24 |
