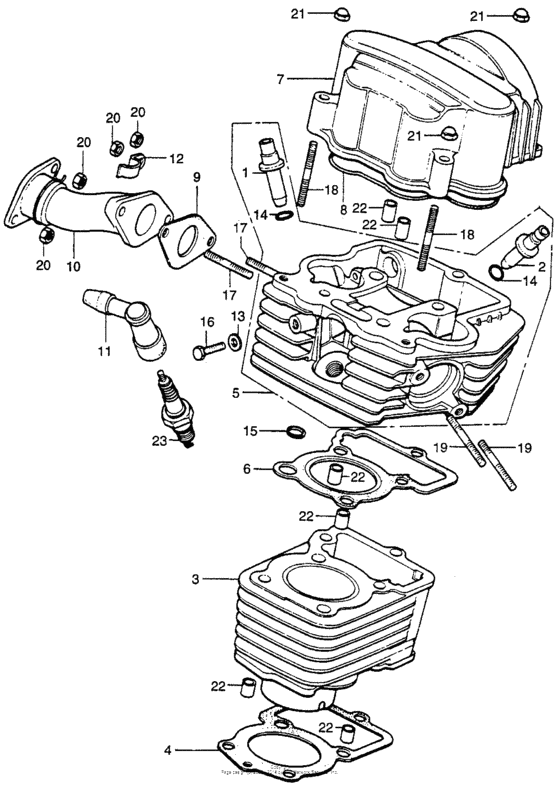

Cylinder + cylinder head Diagram Honda XR75
- Model code
- XR75 A
- Sales region
- USA
- Frame
- XR751000001 - XR751024550
- Engine Capacity
- 75
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12203-333-405 Guide, valve |
12203-333-405 |
from US $10.76 |
||
|
2
|
2
12023-116-300 Guide, ex. valve |
12023-116-300 |
US $14.80 |
||
| replacement | |||||
|
2
|
2
12023-465-405 Guide, valve |
12023-465-405 |
from US $13.91 |
||
|
2
|
2
12023-465-405 Guide, valve |
12023-465-405 |
from US $13.91 |
||
|
3
|
3
12100-116-000
Cylinder
|
12100-116-000 |
— | ||
|
4
|
4
12191-116-306
Gasket, cylinder
|
12191-116-306 |
— | ||
|
5
|
5
12200-116-010
Cylinder head
Use up to Engine SN 1015000 |
12200-116-010 |
— | ||
|
6
|
6
12251-116-306
Gasket, cyl hd
|
12251-116-306 |
— | ||
|
7
|
7
12301-115-040
Cover, cylinder head
|
12301-115-040 |
— | ||
|
8
|
8
12391-115-030
Gasket, cyl hd cvr
|
12391-115-030 |
— | ||
|
9
|
9
16229-115-306
Gasket, insulator
|
16229-115-306 |
— | ||
|
10
|
10
17111-116-010
Pipe,inlet
|
17111-116-010 |
— | ||
|
11
|
11
30700-152-163 Cap assy. |
30700-152-163 |
from US $17.41 |
||
| replacement | |||||
|
11
|
11
30700-KE2-942 Cap, spark plug |
30700-KE2-942 |
from US $21.78 |
||
|
12
|
12
32921-115-000
Clip,hightention
|
32921-115-000 |
— | ||
|
13
|
13
90441-028-010 Washer, sealing, 6mm |
90441-028-010 |
from US $2.37 |
||
|
14
|
14
91301-200-000 O-ring (10x1.6) |
91301-200-000 |
from US $2.44 |
||
|
15
|
15
91306-141-000 Gasket, rubber (9mm) |
91306-141-000 |
from US $3.40 |
||
|
16
|
16
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
17
|
17
92900-06018-0B BoltSTUD, 6X18 |
92900-06018-0B |
from US $0.55 |
||
|
18
|
18
92900-06028-0B BoltSTUD, 6X28 |
92900-06028-0B |
from US $0.59 |
||
|
19
|
19
92900-06032-0E Bolt 2, stud (6x32) |
92900-06032-0E |
from US $0.89 |
||
|
20
|
20
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
21
|
21
9402106020 Nut, cap (6mm) |
9402106020 |
from US $0.74 |
||
|
22
|
22
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
23
|
23
98056-57713 Plug,spark |
98056-57713 |
from US $3.20 |
||
| replacement | |||||
|
23
|
23
98056-57718 Spark plug (cr7hsa) |
98056-57718 |
from US $4.08 |
||
