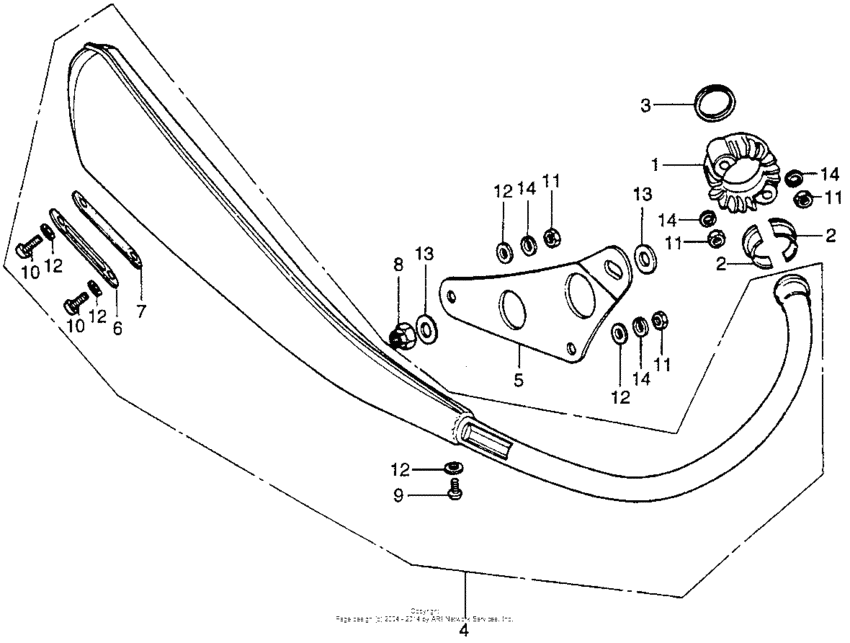

Exhaust muffler Diagram Honda XR75
- Model code
- XR75 A
- Sales region
- USA
- Frame
- XR751000001 - XR751024550
- Engine Capacity
- 75
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18231-115-010
Joint,exhaustpipe
|
18231-115-010 |
— | ||
|
2
|
2
18233-115-010
Color,exh.pipe
|
18233-115-010 |
— | ||
|
3
|
3
18291-115-306
Gasket, ex. pipe
|
18291-115-306 |
— | ||
|
4
|
4
18300-116-677
Muffler comp.,ex.
|
18300-116-677 |
— | ||
|
5
|
5
18340-116-670CT
Stay,muff.hanger
|
18340-116-670CT |
— | ||
|
6
|
6
18373-446-010
Lid,muffler
|
18373-446-010 |
— | ||
|
7
|
7
18374-KR8-900
Gasket, muffler
|
18374-KR8-900 |
— | ||
|
8
|
8
90351-268-000 Nut (10mm) |
90351-268-000 |
from US $4.11 |
||
|
9
|
9
93500-060-084-J Screw,pan,6x8 |
93500-060-084-J |
from US $1.04 |
||
|
10
|
10
93500-060124J Screw, pan, 6x12 |
93500-060124J |
from US $0.81 |
||
|
11
|
11
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
12
|
12
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
13
|
13
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
||
|
14
|
14
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
