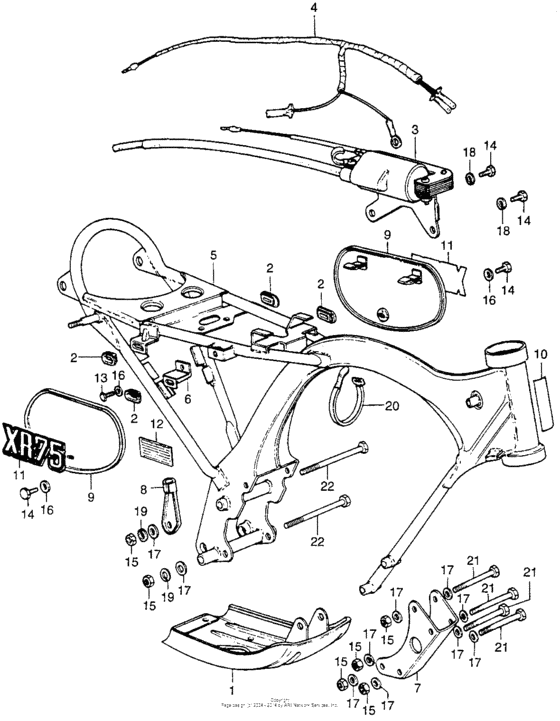

Frame Diagram Honda XR75
- Model code
- XR75 A
- Sales region
- USA
- Frame
- XR751000001 - XR751024550
- Engine Capacity
- 75
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11911-116-670-B
Protector *nh1*
|
11911-116-670-B |
— | ||
|
2
|
2
17247-292-010 Grommet |
17247-292-010 |
from US $6.26 |
||
|
3
|
3
30500-115-013
Coil,a.c ignition
|
30500-115-013 |
— | ||
|
4
|
4
32100-116-670
Harness,wire
|
32100-116-670 |
— | ||
|
5
|
5
50100-116-672-B
Frame *nh1*
|
50100-116-672-B |
— | ||
|
6
|
6
50152-116-670-B
Stay b, r. *nh1*
|
50152-116-670-B |
— | ||
|
7
|
7
50351-116-672-B Plate, fr. *nh1* |
50351-116-672-B |
US $18.97 |
||
|
8
|
8
50356-115-000
Receiver,clutch
|
50356-115-000 |
— | ||
|
9
|
9
83510-116-670QN
Plate,side number
|
83510-116-670QN |
— | ||
|
10
|
10
87125-041-680 Honda Motor Co., Made In Japan, Sticker |
87125-041-680 |
from US $1.40 |
||
|
11
|
11
87128-116-670
Mark
|
87128-116-670 |
— | ||
|
12
|
12
87508-120-000 Label |
87508-120-000 |
from US $8.14 |
||
|
13
|
13
92101-06010-0A Bolt, hex., 6x10 |
92101-06010-0A |
from US $0.44 |
||
|
14
|
14
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
14
|
14
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
14
|
14
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
15
|
15
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
16
|
16
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
17
|
17
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.25 |
||
|
18
|
18
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
19
|
19
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
20
|
20
9501461300 Band a3, cable |
9501461300 |
from US $1.18 |
||
|
21
|
21
95301-080-600-0 Bolt, hex. (8x60) |
95301-080-600-0 |
from US $0.74 |
||
|
22
|
22
95300-081-000-0 Bolt,hex.,8x100 |
95300-081-000-0 |
US $1.04 |
||
