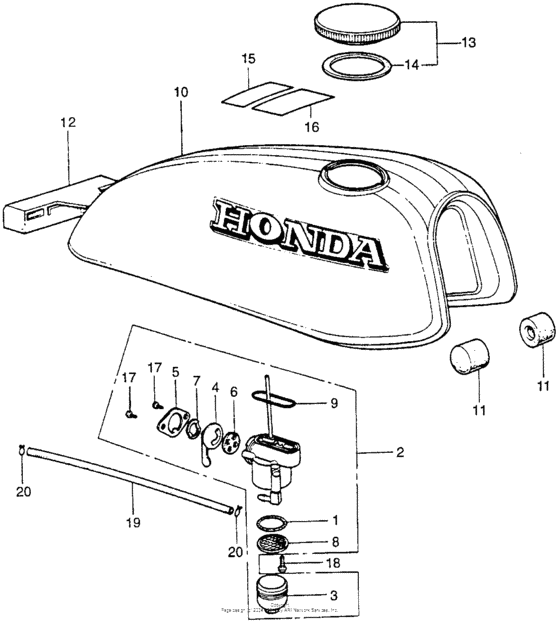

Fuel tank Diagram Honda XR75
- Model code
- XR75 A
- Sales region
- USA
- Frame
- XR751000001 - XR751024550
- Engine Capacity
- 75
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16080-898-631 O-ring |
16080-898-631 |
from US $15.23 |
||
|
1
|
1
16173-001-004 Packing, fuel strainer cup |
16173-001-004 |
from US $5.48 |
||
|
1
|
1
16955-283-000 Packing, cock |
16955-283-000 |
US $5.92 |
||
| replacement | |||||
|
1
|
1
16075-GHB-B00 O-ring (2.4x18.6) |
16075-GHB-B00 |
from US $5.15 |
||
|
2
|
2
16950-116-671
Cock.fue,xr75k3-a
|
16950-116-671 |
— | ||
|
3
|
3
16952-028-000
Cup
|
16952-028-000 |
— | ||
|
4
|
4
16953-011-000
Lever, fuel cock
|
16953-011-000 |
— | ||
|
5
|
5
16954-028-000
Cover,cock
|
16954-028-000 |
— | ||
|
6
|
6
16957-ZE1-812 Packing, fuel cock |
16957-ZE1-812 |
from US $1.92 |
||
|
7
|
7
16956-ZE1-811 Spring, cock lever |
16956-ZE1-811 |
from US $1.70 |
||
|
8
|
8
16957-028-000 Screen |
16957-028-000 |
from US $13.19 |
||
|
9
|
9
16997-273-006 Oring,23mm |
16997-273-006 |
from US $8.88 |
||
|
10
|
10
17500-116-670QN
Tank assy.,fuel
|
17500-116-670QN |
— | ||
|
11
|
11
17611-303-000 Rubber, fr |
17611-303-000 |
from US $7.99 |
||
|
12
|
12
17613-051-010 Cushion, tank rr. |
17613-051-010 |
from US $6.22 |
||
|
13
|
13
17620-402-010
Cap comp.,fuel fi
|
17620-402-010 |
— | ||
| replacement | |||||
|
13
|
13
17620-402-020 CAP, FUEL FILLER |
17620-402-020 |
US $19.16 |
||
|
14
|
14
17631-329-003
Packing, fuel filler cap (39x58x3)
|
17631-329-003 |
— | ||
| replacement | |||||
|
14
|
14
17631-329-013
PACKING, FUEL FILLER
|
17631-329-013 |
— | ||
|
15
|
15
87504-045-020-S
Label a,caution
|
87504-045-020-S |
— | ||
|
16
|
16
87560-323-670ZA Mark,drive c*nh1* |
87560-323-670ZA |
from US $4.06 |
||
|
17
|
17
93500-030060A Screw, pan, 3x6 |
93500-030060A |
from US $0.37 |
||
|
18
|
18
93500-060-160-A ScrewPAN, 6X16 |
93500-060-160-A |
from US $0.44 |
||
|
19
|
19
95001-450-0360M Bulk hose (4.5x3000) |
95001-450-0360M |
from US $17.68 |
||
|
20
|
20
95002-02080 ClipTUBE(B8) |
95002-02080 |
from US $0.44 |
||
