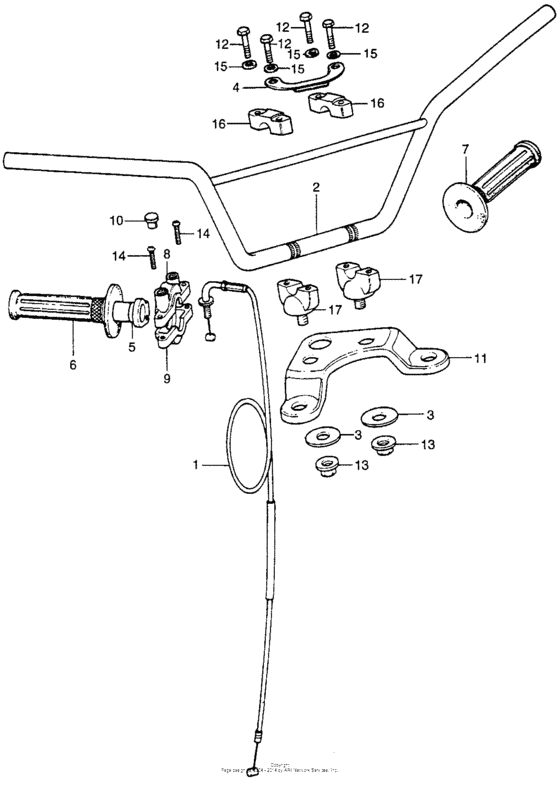

Handlebar Diagram Honda XR75
- Model code
- XR75 A
- Sales region
- USA
- Frame
- XR751000001 - XR751024550
- Engine Capacity
- 75
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-116-670
Cable, throttle
|
17910-116-670 |
— | ||
|
2
|
2
53100-116-690
Pipe,strg.handle
|
53100-116-690 |
— | ||
|
3
|
3
53135-028-000 Seat, cushion |
53135-028-000 |
US $2.89 |
||
|
4
|
4
53139-107-721
Holder,cable
|
53139-107-721 |
— | ||
|
5
|
5
53141-116-670 Pipe,throttle |
53141-116-670 |
US $13.38 |
||
|
6
|
6
53165-116-670 Grip,r-handle |
53165-116-670 |
from US $14.84 |
||
|
7
|
7
53166-116-670 Grip,l-handle |
53166-116-670 |
from US $14.86 |
||
|
8
|
8
53167-329-811
Housing,up.throt.
|
53167-329-811 |
— | ||
|
9
|
9
53168-329-811
Hosing,un.throt.
|
53168-329-811 |
— | ||
|
10
|
10
53169-116-670
Seal,cap
|
53169-116-670 |
— | ||
|
11
|
11
53231-116-670ZB
Bridge,top*nh-105
|
53231-116-670ZB |
— | ||
|
12
|
12
90117-065-000 Bolt hex 6x28 |
90117-065-000 |
from US $2.96 |
||
|
13
|
13
90354-115-000 Nut, hex. (10mm) |
90354-115-000 |
from US $4.29 |
||
|
14
|
14
93500-060-250-A ScrewPAN, 6X25 |
93500-060-250-A |
from US $0.52 |
||
|
15
|
15
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
16
|
16
9501421201 Holder a2, handlebar |
9501421201 |
US $4.74 |
||
|
17
|
17
9501432200 Holder b2, handlebar |
9501432200 |
US $7.70 |
