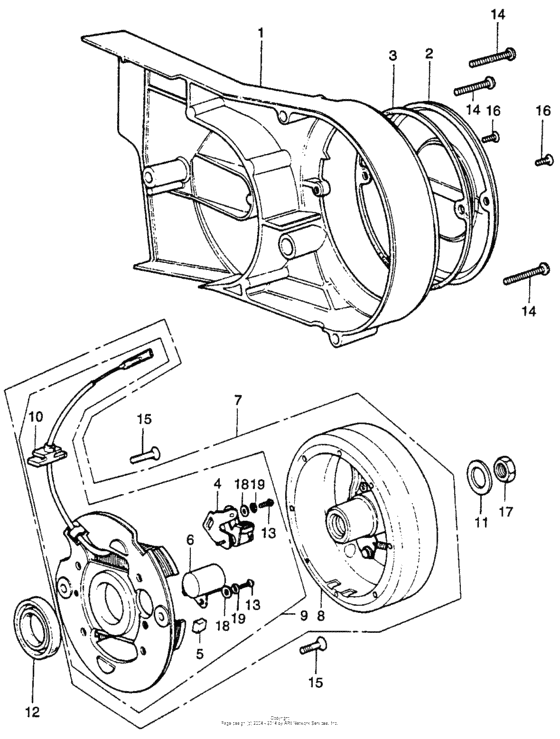

Left crankcase cover + generator Diagram Honda XR75
- Model code
- XR75 A
- Sales region
- USA
- Frame
- XR751000001 - XR751024550
- Engine Capacity
- 75
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-116-000
Cover, l. crankcase
|
11341-116-000 |
— | ||
|
2
|
2
11431-116-000
Cover, alternator
|
11431-116-000 |
— | ||
|
3
|
3
11432-086-306
Gasket, dynamo cover
|
11432-086-306 |
— | ||
|
4
|
4
30202-041-015 Points |
30202-041-015 |
from US $35.67 |
||
|
5
|
5
30205-041-005 Felt, oil |
30205-041-005 |
from US $3.70 |
||
|
6
|
6
30250-041-005 Condenser |
30250-041-005 |
from US $19.18 |
||
|
7
|
7
31100-116-005
A.c.generator
|
31100-116-005 |
— | ||
|
8
|
8
31121-116-005
Fly wheel
|
31121-116-005 |
— | ||
|
9
|
9
31141-116-005
Stator
|
31141-116-005 |
— | ||
|
10
|
10
32971-116-000
Grommet
|
32971-116-000 |
— | ||
|
11
|
11
90426-035-000 Washer, magnet fixing |
90426-035-000 |
from US $3.77 |
||
|
12
|
12
91202-115-015 Oil seal (19x36x7) |
91202-115-015 |
from US $6.22 |
||
|
13
|
13
93500-040-100-A ScrewPAN, 4X10 |
93500-040-100-A |
from US $0.37 |
||
|
14
|
14
93500-060350A Screw, pan, 6x35 |
93500-060350A |
from US $0.52 |
||
|
15
|
15
93600-060-160-A ScrewFLAT, 6X16 |
93600-060-160-A |
from US $0.44 |
||
|
16
|
16
93700-050-120-A Screw, oval (5x12) |
93700-050-120-A |
from US $0.37 |
||
|
17
|
17
9403010000 Nut, hex., 10mm |
9403010000 |
from US $0.55 |
||
|
18
|
18
94101-04000 WasherPLAIN, 4MM |
94101-04000 |
from US $0.37 |
||
|
19
|
19
94111-04000 WasherSPRING, 4MM |
94111-04000 |
from US $0.37 |
