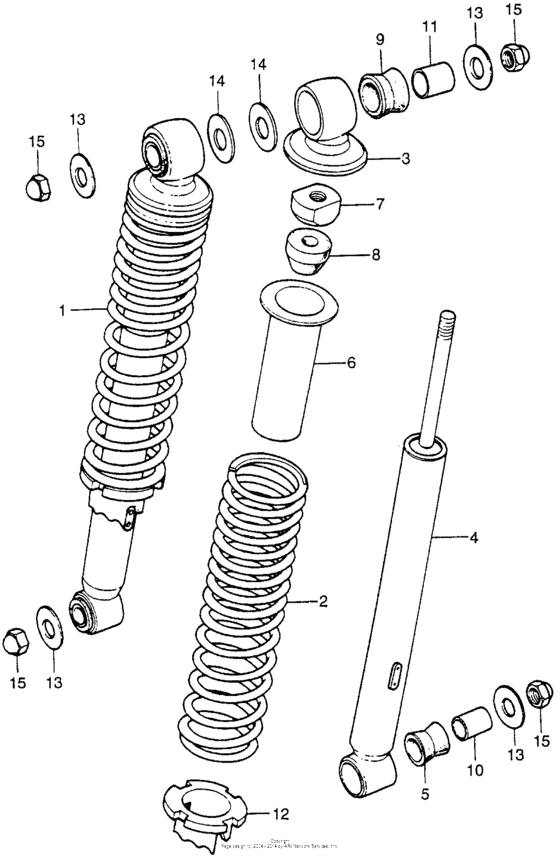

Rear shock absorber Diagram Honda XR75
- Model code
- XR75 A
- Sales region
- USA
- Frame
- XR751000001 - XR751024550
- Engine Capacity
- 75
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-116-671
Shock absorber, rr.
|
52400-116-671 |
— | ||
|
2
|
2
52407-118-771
Spring, rr. shock
|
52407-118-771 |
— | ||
|
3
|
3
52410-303-020
Metal,cushion
|
52410-303-020 |
— | ||
|
4
|
4
52450-159-612
Damper comp., rr.
|
52450-159-612 |
— | ||
|
5
|
5
52476-001-020 Bush, rr. |
52476-001-020 |
from US $3.63 |
||
|
6
|
6
52476-118-770
Guide, rr.
|
52476-118-770 |
— | ||
|
7
|
7
52482-028-030 Nutrr cushionlock |
52482-028-030 |
US $4.09 |
||
|
8
|
8
52483-107-003 Rubber,stopper |
52483-107-003 |
US $5.56 |
||
|
9
|
9
52485-118-000
Bush,rub.rr.cush.
|
52485-118-000 |
— | ||
|
10
|
10
52486-001-000 Collar |
52486-001-000 |
from US $3.18 |
||
|
11
|
11
52496-040-000 Rubber, cushion |
52496-040-000 |
from US $4.07 |
||
|
12
|
12
52490-116-671
Adj,rr.cush.spg.
|
52490-116-671 |
— | ||
|
13
|
13
90527-230-000 Washer, plain, 10.3mm |
90527-230-000 |
from US $2.87 |
||
|
14
|
14
90531-011-010 Washer, 12mm |
90531-011-010 |
from US $2.22 |
||
|
15
|
15
94021-100000S Nut, cap, 10mm |
94021-100000S |
from US $0.81 |
