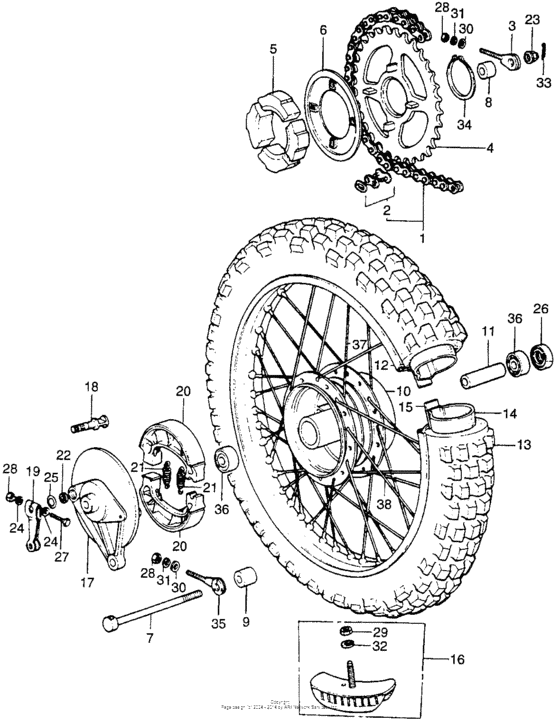

Rear wheel Diagram Honda XR75
- Model code
- XR75 A
- Sales region
- USA
- Frame
- XR751000001 - XR751024550
- Engine Capacity
- 75
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
405W3-GT9-505 Chain, drive(Optional). |
405W3-GT9-505 |
US $28.83 |
||
|
1
|
1
40530-GBJ-741 Chain, drive (did42) |
40530-GBJ-741 |
US $26.79 |
||
|
1
|
1
40530-116-811 Chain,drive(Optional). |
40530-116-811 |
US $44.08 |
||
|
2
|
2
40531-098-003 Master link |
40531-098-003 |
from US $4.29 |
||
|
3
|
3
40543-958-000
Adjuster,chain
|
40543-958-000 |
— | ||
|
3
|
3
40544-061-000
Adjuster,l.chain
|
40544-061-000 |
— | ||
| replacement | |||||
|
3
|
3
40543-958-000
Adjuster,chain
|
40543-958-000 |
— | ||
|
4
|
4
41201-151-000
Sprkt,finaldriven
|
41201-151-000 |
— | ||
|
4
|
4
41201-118-820
Sprocket (49t)
(Optional). |
41201-118-820 |
— | ||
|
4
|
4
41200-GEY-000 Sprkt.comp.,finl.(Optional). |
41200-GEY-000 |
US $62.29 |
||
|
5
|
5
41241-051-000 Damper, rr. wheel |
41241-051-000 |
from US $5.18 |
||
|
6
|
6
41245-051-000 Cover, rr |
41245-051-000 |
from US $5.18 |
||
|
7
|
7
42301-051-020
Axle,rear wheel
|
42301-051-020 |
— | ||
|
8
|
8
42304-098-000 Collar,rear wheel |
42304-098-000 |
from US $4.29 |
||
|
9
|
9
42313-051-000
Collar, panel
|
42313-051-000 |
— | ||
|
10
|
10
42601-115-000
Hub, rr. wheel
|
42601-115-000 |
— | ||
|
11
|
11
42620-051-000
Collar, rear axle
|
42620-051-000 |
— | ||
|
12
|
12
42701-116-405
Rim wheel,rr
|
42701-116-405 |
— | ||
|
13
|
13
42711-116-672
Tire,rear 300-14
|
42711-116-672 |
— | ||
|
14
|
14
42712-116-672 Tube, tire (3.00-14) |
42712-116-672 |
US $19.50 |
||
|
15
|
15
42713-116-671 Flap, rr. tube (14) |
42713-116-671 |
from US $1.48 |
||
|
16
|
16
42715-116-671
Spacer,1.60a bead
|
42715-116-671 |
— | ||
|
16
|
16
42715-314-650
Spacer,160a bead
|
42715-314-650 |
— | ||
|
17
|
17
43100-115-000
Panel, rr. brake
|
43100-115-000 |
— | ||
|
18
|
18
43141-107-010 Cam,rear brake |
43141-107-010 |
US $14.78 |
||
|
19
|
19
43410-041-020
Arm,rear brake
|
43410-041-020 |
— | ||
|
20
|
20
45120-001-010
Shoe, brake
|
45120-001-010 |
— | ||
|
21
|
21
45133-028-000 Spring, brake shoe |
45133-028-000 |
from US $2.44 |
||
|
22
|
22
45134-250-000 Dust seal, brake cam |
45134-250-000 |
from US $2.22 |
||
|
23
|
23
90305-169-000 Nut, axle (12mm) |
90305-169-000 |
from US $5.33 |
||
|
24
|
24
90525-001-000 WasherRR. BRAKE ARM |
90525-001-000 |
from US $1.78 |
||
|
25
|
25
90549-121-000
Washer,plain 14mm
|
90549-121-000 |
— | ||
|
26
|
26
90753-051-003 Oil seal (26x37x6) |
90753-051-003 |
from US $6.22 |
||
|
27
|
27
92000-06036 Bolt,hex 6x36 |
92000-06036 |
from US $0.52 |
||
| replacement | |||||
|
27
|
27
92201-06035-0A Bolt, hex. (6x35) |
92201-06035-0A |
from US $0.52 |
||
|
27
|
27
92201-06035-0A Bolt, hex. (6x35) |
92201-06035-0A |
from US $0.52 |
||
|
28
|
28
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
29
|
29
94001-080-200-S Nut,hex 8m/m |
94001-080-200-S |
from US $0.52 |
||
|
30
|
30
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
31
|
31
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
32
|
32
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
33
|
33
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
33
|
33
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
33
|
33
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
34
|
34
94510-50000 Circlip,50mm |
94510-50000 |
US $1.48 |
||
|
35
|
35
9501410100 Adjuster a, r. chain |
9501410100 |
from US $1.63 |
||
|
36
|
36
96140-630-101-0
Bearing (6301u)
|
96140-630-101-0 |
— | ||
|
37
|
37
97283-420-891-0 Spoke b,10x124.5 |
97283-420-891-0 |
from US $1.92 |
||
|
38
|
38
97600-420-881-0 Spoke b,10x124 |
97600-420-881-0 |
from US $1.92 |
||
