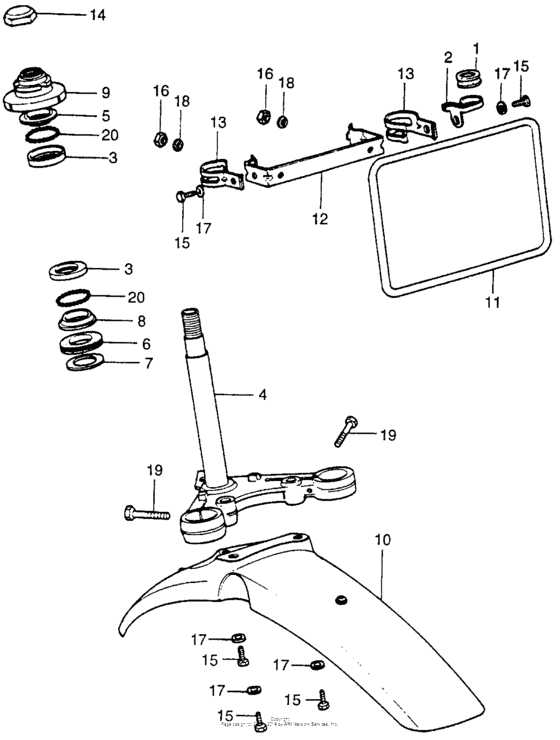

Steering stem + front fender Diagram Honda XR75
- Model code
- XR75 A
- Sales region
- USA
- Frame
- XR751000001 - XR751024550
- Engine Capacity
- 75
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45466-329-000 Guide, cable (inner) |
45466-329-000 |
from US $4.44 |
||
|
2
|
2
45467-116-671
Holder,cable
|
45467-116-671 |
— | ||
|
3
|
3
50301-041-010 Race |
50301-041-010 |
from US $7.70 |
||
|
4
|
4
53200-116-671-B
Stem, steering *nh1*
|
53200-116-671-B |
— | ||
|
5
|
5
53211-028-010 Race, steering cone |
53211-028-010 |
from US $7.84 |
||
|
6
|
6
53214-001-010 Dust seal |
53214-001-010 |
from US $2.44 |
||
| replacement | |||||
|
6
|
6
53214-GJG-C20 DUST SEAL |
53214-GJG-C20 |
from US $2.52 |
||
|
7
|
7
53215-001-000 Washer |
53215-001-000 |
from US $1.92 |
||
|
8
|
8
53212-030-010 Race, steering cone |
53212-030-010 |
from US $7.70 |
||
|
9
|
9
53220-098-670 Thread |
53220-098-670 |
from US $14.42 |
||
|
10
|
10
61100-116-670QN
Fender, fr. *nh36ms*
|
61100-116-670QN |
— | ||
|
11
|
11
64113-116-670-B
Number plate
|
64113-116-670-B |
— | ||
|
12
|
12
64114-116-670-B
Bracket *nh1*
|
64114-116-670-B |
— | ||
|
13
|
13
64115-116-670-B
Stay,no.setting
|
64115-116-670-B |
— | ||
|
14
|
14
90304-159-000 Nut, steering stem |
90304-159-000 |
from US $6.22 |
||
|
15
|
15
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
16
|
16
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
17
|
17
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
18
|
18
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
19
|
19
95300-080-320-0 Bolt,hex.,8x32 |
95300-080-320-0 |
US $0.59 |
||
|
20
|
20
96211-06000 BallSTEEL, #6(3/16) |
96211-06000 |
from US $0.15 |
||
