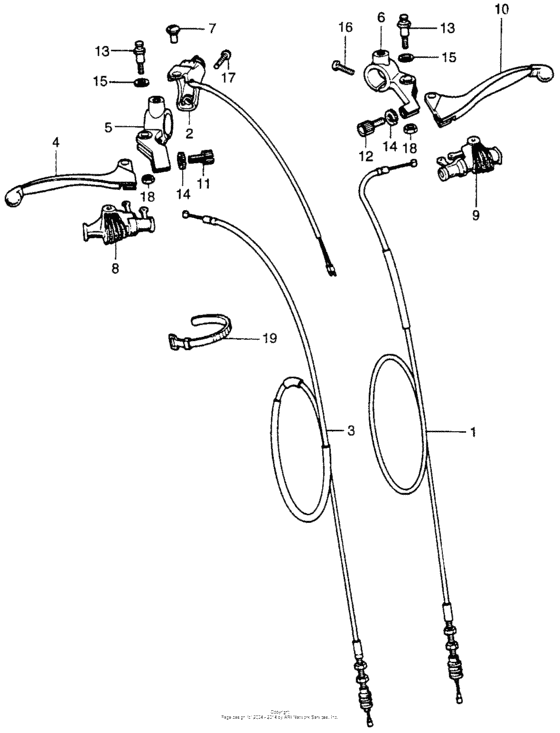

Stop switch + handle lever Diagram Honda XR75
- Model code
- XR75 A
- Sales region
- USA
- Frame
- XR751000001 - XR751024550
- Engine Capacity
- 75
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22870-107-610 Cable,clutch |
22870-107-610 |
US $44.93 |
||
|
2
|
2
35320-329-811
Switch assy.,kill
|
35320-329-811 |
— | ||
|
3
|
3
45450-116-670
Cable,front brake
|
45450-116-670 |
— | ||
|
4
|
4
53175-KY0-980 Lever, r. handlebar |
53175-KY0-980 |
from US $37.67 |
||
|
5
|
5
53171-312-003 Bracket,r.lever |
53171-312-003 |
from US $47.46 |
||
|
6
|
6
53172-310-010 Brkt, l. handlebar |
53172-310-010 |
from US $38.90 |
||
|
7
|
7
53174-116-670 Plug |
53174-116-670 |
from US $2.96 |
||
|
8
|
8
53176-329-000 Cover,r-strg.lev. |
53176-329-000 |
from US $14.22 |
||
|
9
|
9
53179-329-000 Cover,l.strg.lev. |
53179-329-000 |
from US $16.33 |
||
|
10
|
10
53178-369-700 Lever,strg.handle |
53178-369-700 |
from US $23.66 |
||
|
11
|
11
53192-203-000 Bolt |
53192-203-000 |
from US $0.52 |
||
|
12
|
12
53192-268-000 Bolt, cable adj. |
53192-268-000 |
from US $3.74 |
||
|
13
|
13
90114-329-000 Bolt,handle lev. |
90114-329-000 |
from US $8.58 |
||
|
14
|
14
90321-315-670 Nut, fixing |
90321-315-670 |
from US $6.07 |
||
|
15
|
15
90501-310-000 Washer (7x12) |
90501-310-000 |
from US $2.75 |
||
|
16
|
16
93500-060-250-A ScrewPAN, 6X25 |
93500-060-250-A |
from US $0.52 |
||
|
17
|
17
93500-060280A Screw, pan, 6x28 |
93500-060280A |
from US $0.52 |
||
|
18
|
18
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
19
|
19
9501462100 Band b1, wire |
9501462100 |
from US $1.18 |
