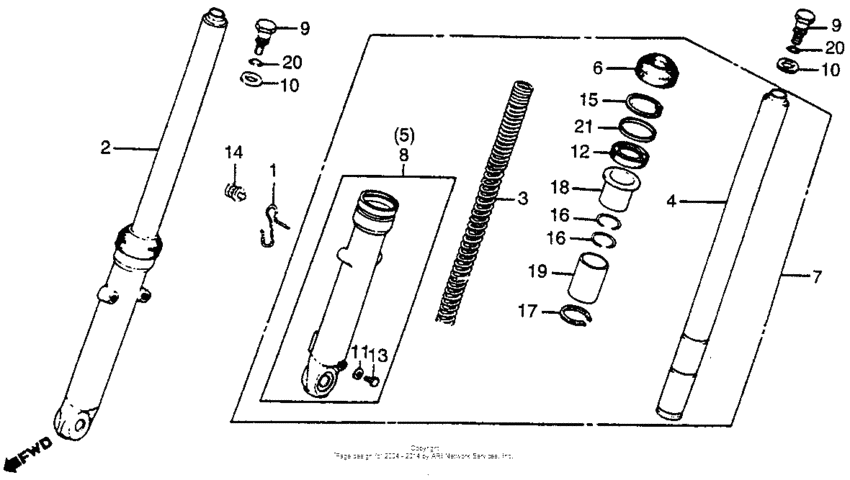

Front shock absorber 79-82 Diagram Honda XR80
- Year
- 1981
- Model code
- XR80 A
- Sales region
- USA
- Frame
- JH2HE010*BK200003 - JH2HE010*BK217688
- Engine Capacity
- 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45469-364-670
Clip, fr.
|
45469-364-670 |
— | ||
|
2
|
2
51400-153-013ZB
Cush,r.fr.*nh-35m
|
51400-153-013ZB |
— | ||
|
3
|
3
51401-153-003
Spring,front cush
|
51401-153-003 |
— | ||
|
4
|
4
51410-152-003
Pipe.comp,fr fork
|
51410-152-003 |
— | ||
|
5
|
5
51420-153-003ZB
Case, r. *nh35m*
|
51420-153-003ZB |
— | ||
|
6
|
6
51425-118-023 Dust seal,fr.fork |
51425-118-023 |
from US $13.48 |
||
|
7
|
7
51500-153-013ZB
Cush,l.fr.*nh-35m
|
51500-153-013ZB |
— | ||
|
8
|
8
51520-153-003ZB
Case,l.fr*nh-35m*
|
51520-153-003ZB |
— | ||
|
9
|
9
90123-153-000 Bolt,fork |
90123-153-000 |
from US $9.40 |
||
|
10
|
10
94606-13001 Washer,fork bolt |
94606-13001 |
from US $0.52 |
||
|
11
|
11
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.15 |
||
|
12
|
12
90756-149-841 Oil seal |
90756-149-841 |
from US $11.40 |
||
|
13
|
13
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
14
|
14
93411-060-120-8 Bolt-washer6X12 |
93411-060-120-8 |
from US $0.52 |
||
|
15
|
15
94521-40000 Cir,clip.40mm |
94521-40000 |
US $1.04 |
||
|
16
|
16
94570-27000
Snapring a,27mm
|
94570-27000 |
— | ||
|
17
|
17
94580-27000 Snapring b,27mm |
94580-27000 |
US $1.33 |
||
|
18
|
18
94602-27101 Guide,pipe,27mm |
94602-27101 |
US $7.10 |
||
|
19
|
19
94603-27002
Piston,fork,27mm
|
94603-27002 |
— | ||
|
20
|
20
9460810000 O-ring (8.4x2.4) |
9460810000 |
from US $0.74 |
||
|
21
|
21
94609-30000 Ring,back up.30mm |
94609-30000 |
US $0.89 |
