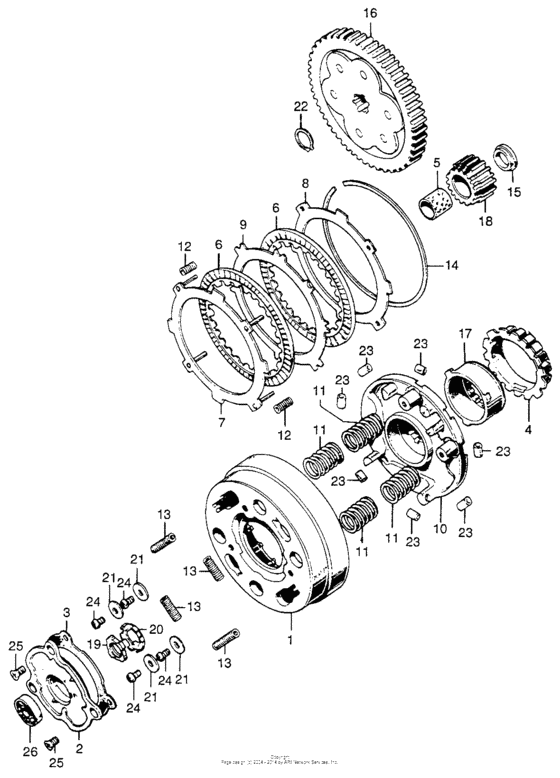

Clutch Diagram Honda Z50
- Model code
- Z50AK3 A
- Sales region
- USA
- Frame
- Z50A1000001 -
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22101-040-030
Clutch outer
|
22101-040-030 |
— | ||
|
2
|
2
22111-040-000
Cvr, clutch (outer)
|
22111-040-000 |
— | ||
|
3
|
3
22119-040-010 Gasket, clutch cover |
22119-040-010 |
from US $3.40 |
||
|
4
|
4
22120-040-030 Center, clutch (17t) |
22120-040-030 |
from US $44.70 |
||
|
5
|
5
22131-035-030 Guide, clutch center |
22131-035-030 |
from US $11.25 |
||
|
6
|
6
22201-165-951 Disk, cl friction |
22201-165-951 |
from US $13.17 |
||
|
7
|
7
22310-GB0-910 Plate a, clutch |
22310-GB0-910 |
from US $11.40 |
||
|
8
|
8
22321-046-020 Plate b, clutch |
22321-046-020 |
from US $11.99 |
||
|
9
|
9
22331-041-000 Plate c, clutch |
22331-041-000 |
from US $7.53 |
||
|
10
|
10
22351-040-080
Plate,drive
|
22351-040-080 |
— | ||
|
11
|
11
22401-040-010 Spring, clutch |
22401-040-010 |
from US $2.82 |
||
|
12
|
12
22411-041-000 Spring, clutch free |
22411-041-000 |
from US $2.74 |
||
|
13
|
13
22421-040-000 Spring |
22421-040-000 |
from US $2.59 |
||
|
14
|
14
22901-001-000 Set-ring (101.5mm) |
22901-001-000 |
from US $3.70 |
||
|
15
|
15
22911-GB4-680 Collar (17mm) |
22911-GB4-680 |
from US $3.92 |
||
|
16
|
16
23110-GCF-670 Gear (67t) |
23110-GCF-670 |
from US $77.52 |
||
|
16
|
16
23110-087-000 Gear,driven |
23110-087-000 |
from US $107.12 |
||
| replacement | |||||
|
16
|
16
23110-GCF-670 Gear (67t) |
23110-GCF-670 |
from US $77.52 |
||
|
17
|
17
23112-041-050 Outer, drive gear |
23112-041-050 |
from US $17.95 |
||
|
18
|
18
23120-041-000 Gear (18t) |
23120-041-000 |
from US $29.51 |
||
|
19
|
19
90231-KY4-900 Nut, lock (14mm) |
90231-KY4-900 |
from US $3.18 |
||
|
20
|
20
90431-001-000
Washer,lock 14mm
|
90431-001-000 |
— | ||
|
21
|
21
90483-041-000 Washer, stopper |
90483-041-000 |
from US $2.29 |
||
|
22
|
22
90601-001-000 Circlip, external, 17mm |
90601-001-000 |
from US $2.22 |
||
|
23
|
23
91102-041-007 Roller (8x10) |
91102-041-007 |
US $2.44 |
||
|
24
|
24
93500-050-080-A ScrewPAN, 5X8 |
93500-050-080-A |
from US $0.37 |
||
|
25
|
25
93600-050-100-A Screw, flat, 5x10 |
93600-050-100-A |
from US $0.37 |
||
|
26
|
26
96100-6000000 Bearing, radial ball, 6000 |
96100-6000000 |
from US $4.74 |
||
