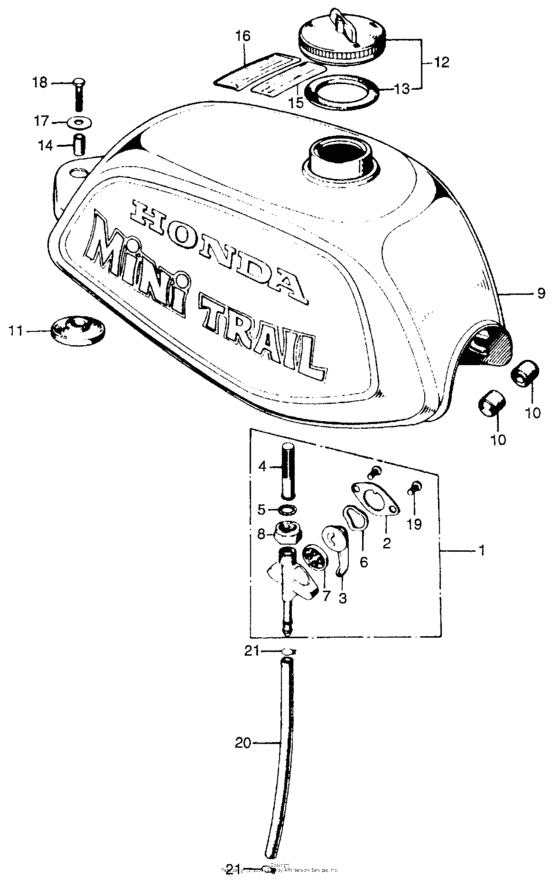

Fuel tank Diagram Honda Z50
- Model code
- Z50AK3 A
- Sales region
- USA
- Frame
- Z50A1000001 -
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16950-045-005 Cock.fuel,z50a.m |
16950-045-005 |
from US $42.86 |
||
|
2
|
2
16952-081-005
Cover, fuel cock
|
16952-081-005 |
— | ||
|
3
|
3
16953-081-005
Lever, fuel cock
|
16953-081-005 |
— | ||
|
4
|
4
16954-045-005 Strainer,cock |
16954-045-005 |
from US $6.12 |
||
|
5
|
5
16957-ZE1-812 Packing, fuel cock |
16957-ZE1-812 |
from US $1.78 |
||
|
6
|
6
16956-ZE1-811 Spring, cock lever |
16956-ZE1-811 |
from US $1.70 |
||
|
7
|
7
16958-081-015 Packing,strainer |
16958-081-015 |
from US $5.77 |
||
|
8
|
8
16962-081-005
Nut, turn buckle
|
16962-081-005 |
— | ||
|
9
|
9
17500-120-305HX
Tank,fuel
|
17500-120-305HX |
— | ||
|
9
|
9
17500-120-305LX
Tank,fuel
|
17500-120-305LX |
— | ||
|
9
|
9
17500-130-305MK
Tank,fuel
|
17500-130-305MK |
— | ||
|
9
|
9
17500-130-305NC
Tank,fuel
|
17500-130-305NC |
— | ||
|
10
|
10
17611-045-670 Cushion,tank,fr |
17611-045-670 |
from US $6.96 |
||
|
11
|
11
17613-120-000 Rubber, fuel tank |
17613-120-000 |
from US $4.29 |
||
|
12
|
12
17620-165-642 Cap, fuel filler |
17620-165-642 |
US $51.77 |
||
| replacement | |||||
|
12
|
12
17620-165-643 CAP, FUEL FILLER |
17620-165-643 |
from US $51.77 |
||
|
13
|
13
17631-096-701
Gasket
|
17631-096-701 |
— | ||
| replacement | |||||
|
13
|
13
17631-096-702 Gasket |
17631-096-702 |
from US $3.98 |
||
|
14
|
14
80109-061-010 Collar b, rr. fender |
80109-061-010 |
from US $2.59 |
||
|
15
|
15
87504-045-020-S
Label a,caution
|
87504-045-020-S |
— | ||
|
16
|
16
87560-323-670-A Mark,caution |
87560-323-670-A |
from US $4 |
||
|
16
|
16
87560-323-670ZA Mark,drive c*nh1* |
87560-323-670ZA |
from US $4.06 |
||
|
17
|
17
94103-06800 WasherPLAIN, 6MM |
94103-06800 |
from US $0.37 |
||
|
18
|
18
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
19
|
19
93700-030-060-B Screw,oval,3x6 |
93700-030-060-B |
from US $0.52 |
||
|
20
|
20
95001-350-0360M Bulk hose (3.5x3000) |
95001-350-0360M |
from US $13.99 |
||
|
21
|
21
95002-02080 ClipTUBE(B8) |
95002-02080 |
from US $0.44 |
||
