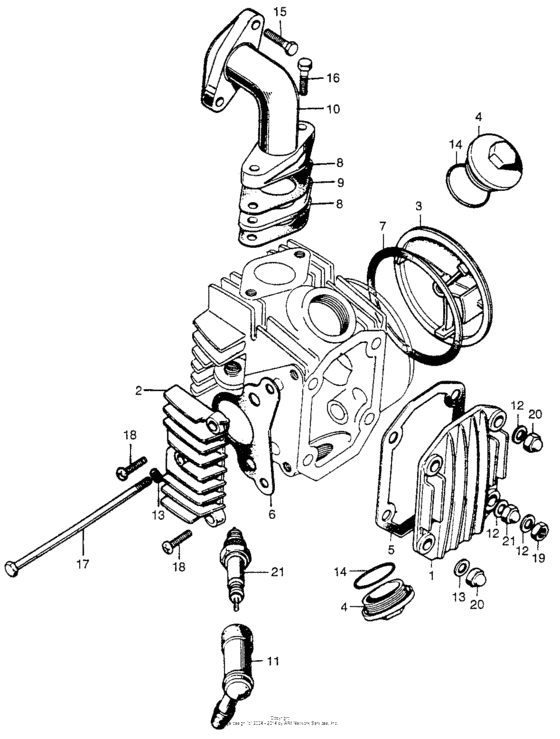

Cylinder head cover + inletpipe Diagram Honda Z50
- Model code
- Z50AK4 A
- Sales region
- USA
- Frame
- Z50A3000001 -
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12301-035-000 Cover, cylinder head |
12301-035-000 |
US $15.37 |
||
|
2
|
2
12331-035-000 Cvr, r. cyl hd side |
12331-035-000 |
US $19.91 |
||
|
3
|
3
12341-035-000 Cvr, l. cyl hd side |
12341-035-000 |
from US $15.37 |
||
|
4
|
4
12361-300-000 Cap, valve adj. |
12361-300-000 |
from US $13.04 |
||
|
5
|
5
12391-GW8-680 Gasket, cyl hd cvr |
12391-GW8-680 |
US $5.71 |
||
| replacements | |||||
|
5
|
5
12391-GW8-681 Gasket, cyl hd cvr |
12391-GW8-681 |
US $4.91 |
||
|
5
|
5
12391-KVM-C20 GASKET, CYLINDER HEAD |
12391-KVM-C20 |
from US $4 |
||
|
6
|
6
12394-035-010 Gasket, r. cylinder |
12394-035-010 |
from US $4.07 |
||
|
7
|
7
12395-GW8-681 Gasket, l |
12395-GW8-681 |
US $6.83 |
||
| replacement | |||||
|
7
|
7
12395-GW8-682 Gasket, l |
12395-GW8-682 |
from US $4.29 |
||
|
8
|
8
16201-045-306 Gasket, insulator |
16201-045-306 |
from US $3.48 |
||
|
9
|
9
16211-045-306 Insulator, in. pipe |
16211-045-306 |
US $13.38 |
||
|
10
|
10
17111-045-720
Inlet pipe
|
17111-045-720 |
— | ||
|
11
|
11
30700-KE2-942 Cap, spark plug |
30700-KE2-942 |
from US $21.78 |
||
|
12
|
12
90442-035-000 Washer (6mm) |
90442-035-000 |
from US $2.29 |
||
|
13
|
13
90443-035-000 Washer a (6mm) |
90443-035-000 |
from US $2.22 |
||
|
14
|
14
91302-001-020 O-ring, 30.8mm |
91302-001-020 |
from US $3.63 |
||
|
15
|
15
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
16
|
16
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
17
|
17
92101-06110-0A Bolt, hex. (6x112) |
92101-06110-0A |
from US $1.04 |
||
|
18
|
18
93500-060-200-A ScrewPAN, 6X20 |
93500-060-200-A |
from US $0.44 |
||
|
19
|
19
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
20
|
20
9402106020 Nut, cap (6mm) |
9402106020 |
from US $0.74 |
||
|
21
|
21
98056-56713 Spark Plug (NGK C6HSA) |
98056-56713 |
from US $3.71 |
||
|
21
|
21
98056-56723 Plug,spark (u20fs |
98056-56723 |
from US $3.21 |
||
