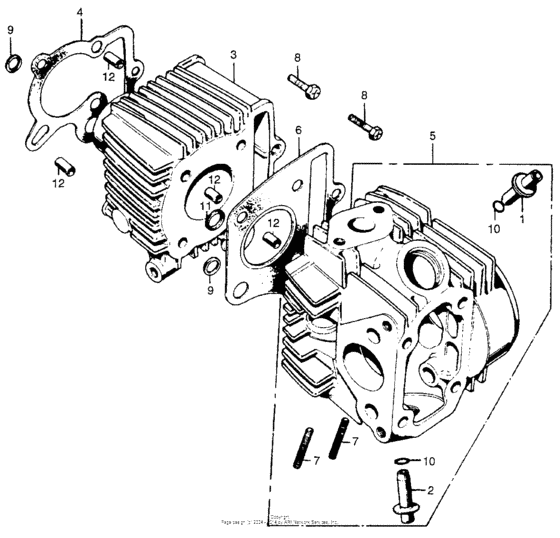

Cylinder head + cylinder Diagram Honda Z50
- Model code
- Z50AK4 A
- Sales region
- USA
- Frame
- Z50A3000001 -
- Engine Capacity
- 50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12023-035-405 Guide, valve |
12023-035-405 |
US $13.87 |
||
|
2
|
2
12023-051-320
Guide, ex. valve
|
12023-051-320 |
— | ||
|
3
|
3
12101-GB2-000 Cylinder |
12101-GB2-000 |
from US $145.52 |
||
|
4
|
4
12191-GW8-681
Gasket, cylinder
|
12191-GW8-681 |
— | ||
| replacement | |||||
|
4
|
4
12191-GW8-682 Gasket, cylinder |
12191-GW8-682 |
US $6.51 |
||
|
5
|
5
12200-041-305
Cylinder head
|
12200-041-305 |
— | ||
|
6
|
6
12251-065-505 Gasket, cyl hd |
12251-065-505 |
US $16.32 |
||
|
7
|
7
90033-041-020 Bolt, stud (6x32) |
90033-041-020 |
from US $2.44 |
||
|
8
|
8
90082-035-010 Bolt (6mm) |
90082-035-010 |
from US $2.15 |
||
|
9
|
9
91303-035-000 Gasket (16mm) |
91303-035-000 |
from US $4.66 |
||
|
10
|
10
91306-028-000 O ring 9.5x1.6 |
91306-028-000 |
from US $3.33 |
||
|
11
|
11
91306-141-000 Gasket, rubber (9mm) |
91306-141-000 |
from US $3.40 |
||
|
12
|
12
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
