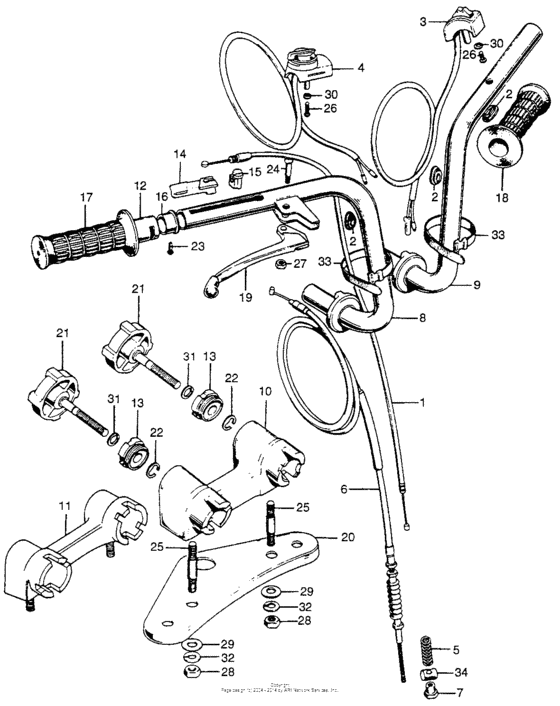

Handlebar Diagram Honda Z50
- Model code
- Z50AK4 A
- Sales region
- USA
- Frame
- Z50A3000001 -
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-130-690
Cable comp,throtl
|
17910-130-690 |
— | ||
|
2
|
2
17911-023-000 Grommet,throttle |
17911-023-000 |
from US $4.22 |
||
|
3
|
3
35250-130-720
Sw assy,lighting
|
35250-130-720 |
— | ||
|
4
|
4
35300-120-673
Switch assy.,kill
|
35300-120-673 |
— | ||
|
5
|
5
45437-001-000 Spring, fr |
45437-001-000 |
from US $3.02 |
||
|
6
|
6
45450-130-640 Cable,front brake |
45450-130-640 |
US $24.21 |
||
|
7
|
7
9501541000 Nut a, brake rod adjustingUse up to Frame SN 1019611 |
9501541000 |
from US $0.81 |
||
|
8
|
8
53110-130-690
R. handle pipe
|
53110-130-690 |
— | ||
|
9
|
9
53120-130-690
Pipe,l, handle
|
53120-130-690 |
— | ||
|
12
|
12
53141-098-000 Pipe,grip,throttl |
53141-098-000 |
from US $16.32 |
||
|
13
|
13
53143-045-000 Nut,holder,handle |
53143-045-000 |
US $13.02 |
||
|
14
|
14
53161-044-000 Hinge,throt wire |
53161-044-000 |
from US $9.47 |
||
|
15
|
15
53162-098-010 Holder,throt cabl |
53162-098-010 |
from US $4.47 |
||
|
16
|
16
53163-044-000 Stopper,throtgrip |
53163-044-000 |
US $7.16 |
||
|
17
|
17
53165-120-000 Grip a,r handle |
53165-120-000 |
from US $14 |
||
|
18
|
18
53166-120-000 Grip a,l handle |
53166-120-000 |
from US $20.55 |
||
|
19
|
19
53175-045-670
Lever,r.handle
|
53175-045-670 |
— | ||
|
20
|
20
53230-120-000-S
Bridge,fork top
|
53230-120-000-S |
— | ||
|
21
|
21
53741-120-000 Knob,handl.holder |
53741-120-000 |
US $31.42 |
||
|
22
|
22
53746-045-010
Spring,knobstoppe
|
53746-045-010 |
— | ||
|
23
|
23
90101-063-505 Screw |
90101-063-505 |
from US $3.11 |
||
|
24
|
24
90116-GF8-000 Screw, l |
90116-GF8-000 |
from US $4.44 |
||
|
26
|
26
93500-030120A Screw, pan, 3x12 |
93500-030120A |
from US $0.36 |
||
|
27
|
27
94001-050-000-S NutHEX., 5MM |
94001-050-000-S |
from US $0.37 |
||
|
28
|
28
94001-100-000-S NutHEX., 10MM |
94001-100-000-S |
from US $0.44 |
||
|
29
|
29
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
||
|
30
|
30
94111-03000 WasherSPRING, 3MM |
94111-03000 |
from US $0.38 |
||
|
31
|
31
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
32
|
32
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
33
|
33
9501462300 Band b3, wire |
9501462300 |
from US $1.55 |
||
|
34
|
34
95015-31001 Joint aBRAKE ARM |
95015-31001 |
from US $0.74 |
