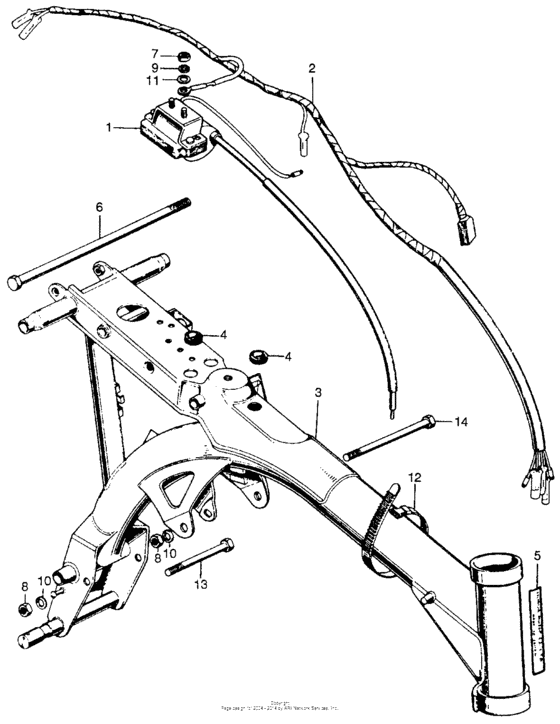

Ignition coil + wire harness Diagram Honda Z50
- Model code
- Z50AK4 A
- Sales region
- USA
- Frame
- Z50A3000001 -
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30500-120-005
Coil,ac ignition
|
30500-120-005 |
— | ||
|
2
|
2
32100-120-670
Harness,wire
|
32100-120-670 |
— | ||
|
3
|
3
50100-130-000-B
Frame *nh1*
|
50100-130-000-B |
— | ||
|
4
|
4
50163-063-000 Grommet, feed tube |
50163-063-000 |
from US $3.18 |
||
|
5
|
5
87125-041-680 Honda Motor Co., Made In Japan, Sticker |
87125-041-680 |
from US $1.42 |
||
|
6
|
6
92101-10239-0B Bolt, hex. (10x239) |
92101-10239-0B |
US $3.48 |
||
|
7
|
7
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
8
|
8
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
9
|
9
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
10
|
10
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
11
|
11
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
12
|
12
9501462200 Band b2, wire |
9501462200 |
from US $1.18 |
||
|
13
|
13
95300-0809800 Bolt, hex. (8x98) |
95300-0809800 |
US $1.04 |
||
|
14
|
14
95300-0811100 Bolt, hex. (8x111) |
95300-0811100 |
from US $1.33 |
