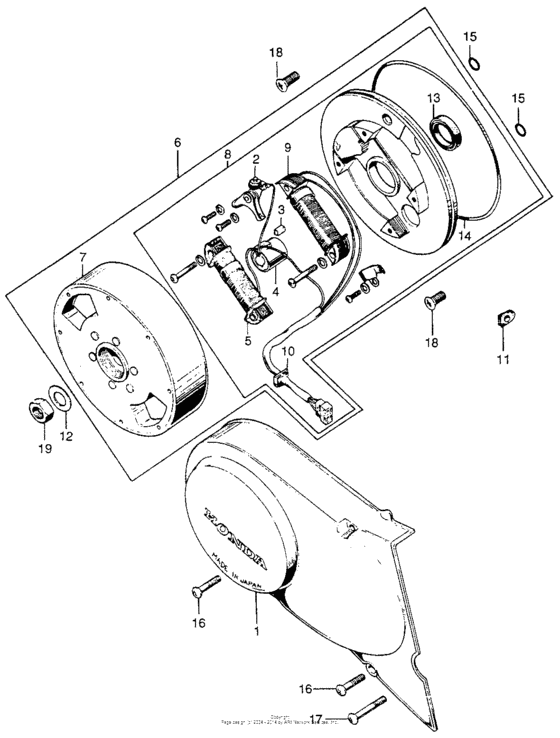

Left crankcase cover + alternator Diagram Honda Z50
- Model code
- Z50AK4 A
- Sales region
- USA
- Frame
- Z50A3000001 -
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-120-020 Cover, l. crankcase |
11341-120-020 |
from US $54.07 |
||
|
2
|
2
30202-041-015 Points |
30202-041-015 |
from US $28.02 |
||
|
3
|
3
30205-041-005 Felt, oil |
30205-041-005 |
from US $3.70 |
||
|
4
|
4
30250-041-005 Condenser |
30250-041-005 |
from US $19.18 |
||
|
5
|
5
30540-041-005
Coil, primary
|
30540-041-005 |
— | ||
|
6
|
6
31100-120-005
Alternator assy.
|
31100-120-005 |
— | ||
|
7
|
7
31121-045-015
Flywheel
|
31121-045-015 |
— | ||
|
8
|
8
31141-120-005
Stator assy.
|
31141-120-005 |
— | ||
|
9
|
9
31631-045-672
Coil,light
|
31631-045-672 |
— | ||
|
10
|
10
32971-035-000 Grommet, cord |
32971-035-000 |
from US $3.33 |
||
|
11
|
11
32981-035-000 Grommet |
32981-035-000 |
US $2.44 |
||
|
12
|
12
90426-035-000 Washer, magnet fixing |
90426-035-000 |
from US $2.66 |
||
|
13
|
13
91202-GK4-722 Oil seal (18.9x30x5) |
91202-GK4-722 |
from US $4.59 |
||
|
14
|
14
91301-035-003 O-ring (107x2) |
91301-035-003 |
from US $3.20 |
||
|
15
|
15
91317-171-003 O-ring (6x1.7) |
91317-171-003 |
from US $2.66 |
||
|
16
|
16
93500-060-200-A ScrewPAN, 6X20 |
93500-060-200-A |
from US $0.44 |
||
|
17
|
17
93500-060350A Screw, pan, 6x35 |
93500-060350A |
from US $0.52 |
||
|
18
|
18
93600-060-160-A ScrewFLAT, 6X16 |
93600-060-160-A |
from US $0.44 |
||
|
19
|
19
9403010000 Nut, hex., 10mm |
9403010000 |
from US $0.55 |
