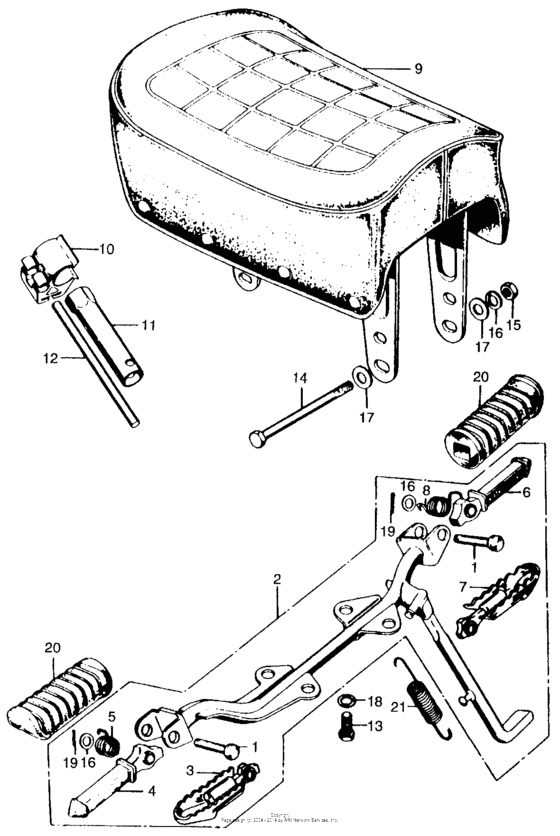

Seat + step bar Diagram Honda Z50
- Model code
- Z50AK4 A
- Sales region
- USA
- Frame
- Z50A3000001 -
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50603-033-010 Pin, step bar joint |
50603-033-010 |
from US $3.70 |
||
|
2
|
2
50610-130-670
Bar assy,step
|
50610-130-670 |
— | ||
|
4
|
4
50616-130-670
Arm,r.step
|
50616-130-670 |
— | ||
|
5
|
5
50617-MM9-000 Spring, r |
50617-MM9-000 |
from US $3.77 |
||
|
7
|
7
50642-130-670
Arm,l.step
|
50642-130-670 |
— | ||
|
8
|
8
50644-MM9-000 Spring, l |
50644-MM9-000 |
from US $3.77 |
||
|
9
|
9
77100-130-000-A
Seat,comp
|
77100-130-000-A |
— | ||
|
10
|
10
83520-120-000
Holder,tool
|
83520-120-000 |
— | ||
|
11
|
11
89216-045-010 Wrench, spark plug |
89216-045-010 |
from US $8.98 |
||
|
12
|
12
89217-045-670 Bar, handle |
89217-045-670 |
from US $4.20 |
||
|
13
|
13
92101-08020-0A BoltHEX., 8X20 |
92101-08020-0A |
from US $0.52 |
||
|
14
|
14
92101-08100-0A Bolt,hex.,8x100 |
92101-08100-0A |
US $1.10 |
||
|
14
|
14
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
15
|
15
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
16
|
16
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
17
|
17
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
18
|
18
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
19
|
19
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
20
|
20
50661-312-000 Rubber,step |
50661-312-000 |
from US $18.36 |
||
|
20
|
20
50661-331-770 Rubber,stepUse up to Frame SN 1019611 |
50661-331-770 |
from US $21.51 |
||
|
20
|
20
95011-24000 Step rubber,dUse up to Frame SN 1019611 |
95011-24000 |
from US $4.74 |
||
| replacement | |||||
|
20
|
20
50661-331-770 Rubber,stepUse up to Frame SN 1019611 |
50661-331-770 |
from US $21.51 |
||
|
21
|
21
9501472102 Spring a, side stand |
9501472102 |
from US $1.08 |
||
