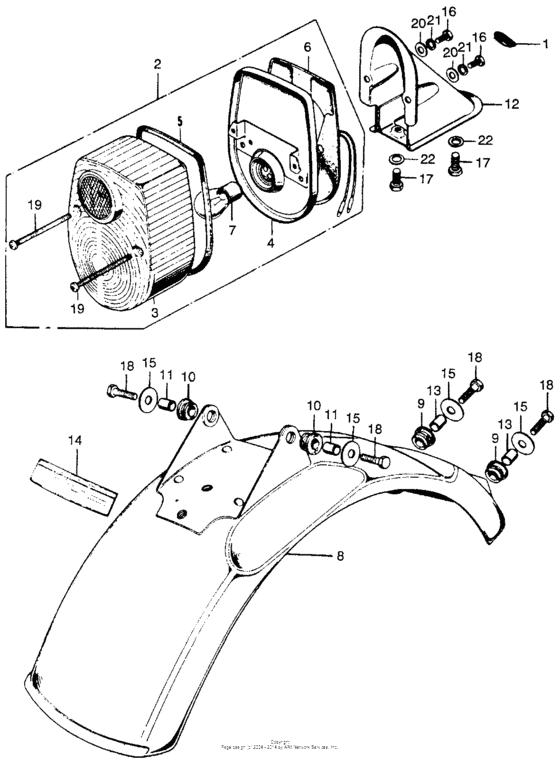

Taillight + rear fender Diagram Honda Z50
- Model code
- Z50AK4 A
- Sales region
- USA
- Frame
- Z50A3000001 -
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17911-023-000 Grommet,throttle |
17911-023-000 |
from US $4.22 |
||
|
2
|
2
33701-120-000
Unit,tail light
|
33701-120-000 |
— | ||
|
3
|
3
33702-045-690 Lens,tail light |
33702-045-690 |
from US $23.94 |
||
|
4
|
4
33703-074-671
Base tail light
|
33703-074-671 |
— | ||
|
5
|
5
33709-074-671 Packing tail lens |
33709-074-671 |
from US $2.44 |
||
|
6
|
6
33719-074-670 Packing tail base |
33719-074-670 |
US $5.18 |
||
|
7
|
7
34906-202-670 Bulb, tail light |
34906-202-670 |
from US $4.07 |
||
|
8
|
8
80100-130-690XW Fender comp,rear |
80100-130-690XW |
from US $157.56 |
||
|
9
|
9
80101-310-000 Rubber, rr. fender cushion |
80101-310-000 |
from US $2.66 |
||
|
10
|
10
80105-061-000 Rubber a, rr. fender |
80105-061-000 |
from US $3.11 |
||
|
11
|
11
80108-061-010 Collar a, rr. fender |
80108-061-010 |
from US $3.40 |
||
|
12
|
12
84701-120-670-B
Bracket,tail lt.
|
84701-120-670-B |
— | ||
|
13
|
13
84705-310-000 Collar, rr. fender |
84705-310-000 |
from US $2.15 |
||
|
15
|
15
94103-06800 WasherPLAIN, 6MM |
94103-06800 |
from US $0.37 |
||
|
16
|
16
92101-05012-0B Bolt,hex.,5x12 |
92101-05012-0B |
from US $0.52 |
||
|
17
|
17
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
17
|
17
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
17
|
17
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
18
|
18
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
19
|
19
93500-040-500-B Screw cross 4x50 |
93500-040-500-B |
from US $0.59 |
||
|
20
|
20
94101-05000 WasherPLAIN, 5MM |
94101-05000 |
from US $0.37 |
||
|
21
|
21
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
22
|
22
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
