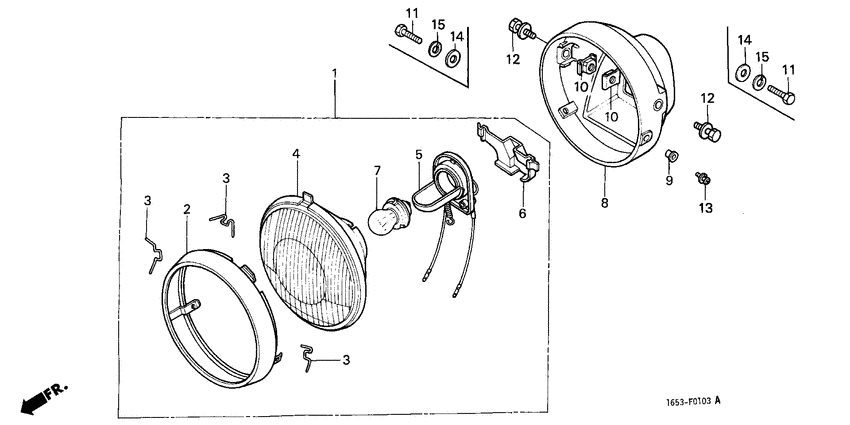

Headlight (4) Diagram Honda Z50
- Year
- 1979
- Model code
- Z50GZ
- Sales region
- Germany
- Frame
- AB026000007 - AB026002416
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-149-611 Headlight assy |
33100-149-611 |
US $133.76 |
||
|
2
|
2
33101-397-000 Rim, head light |
33101-397-000 |
US $34.21 |
||
|
3
|
3
33115-050-910
Spring,unit set
|
33115-050-910 |
— | ||
|
4
|
4
33120-149-611
Unit,headlight
|
33120-149-611 |
— | ||
|
5
|
5
33130-149-611
Socket,headlight
|
33130-149-611 |
— | ||
|
6
|
6
33135-149-611
Cover,hdlt.socket
|
33135-149-611 |
— | ||
|
7
|
7
34901-130-611
Bulb, headlight
|
34901-130-611 |
— | ||
|
8
|
8
61301-149-000ZB
Case,lt.*nh-1*
|
61301-149-000ZB |
— | ||
|
9
|
9
61302-229-300 Collar,light.case |
61302-229-300 |
US $2.66 |
||
|
10
|
10
61303-105-000 Nut,light case |
61303-105-000 |
from US $3.80 |
||
|
11
|
11
92000-08025-0B Bolt,hex 8x25- 6000106 |
92000-08025-0B |
from US $0.81 |
||
| replacement | |||||
|
11
|
11
92101-08025-0B Bolt,hex.,8x25- 6000106 |
92101-08025-0B |
from US $0.81 |
||
|
12
|
12
93493-0802500 Bolt-washer (8x25)6000107 - |
93493-0802500 |
US $0.81 |
||
| replacement | |||||
|
12
|
12
93403-0802500 Bolt-washer (8x25)6000107 - |
93403-0802500 |
US $0.81 |
||
|
13
|
13
93891-050-120-0 Screw-washer5X12 |
93891-050-120-0 |
from US $0.44 |
||
|
14
|
14
94101-08000 WasherPLAIN, 8MM - 6000106 |
94101-08000 |
from US $0.37 |
||
|
15
|
15
94111-08000 WasherSPRING, 8MM - 6000106 |
94111-08000 |
from US $0.37 |
||
