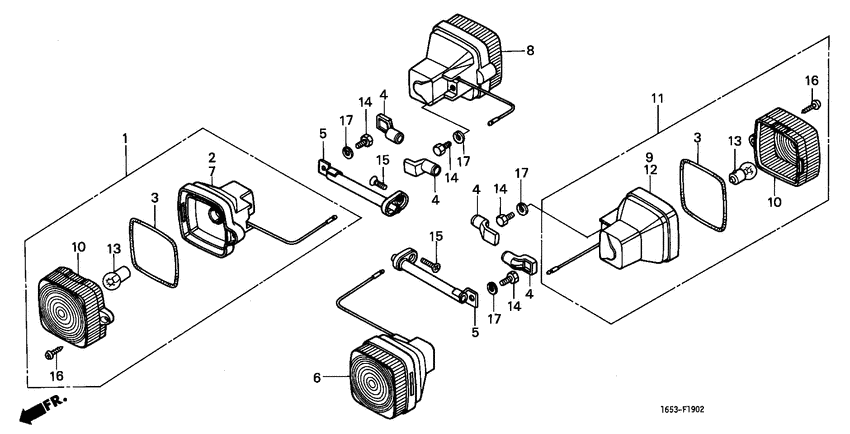

Winker (3) Diagram Honda Z50
- Year
- 1985
- Model code
- Z50JF
- Sales region
- Germany
- Frame
- AB025056944 - AB025057358
- Engine Capacity
- 50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33400-165-600
Winker assy.,r.fr
|
33400-165-600 |
— | ||
|
2
|
2
33401-165-600
Base,winker
|
33401-165-600 |
— | ||
|
3
|
3
33407-166-611 Gasket |
33407-166-611 |
from US $4.14 |
||
|
4
|
4
33425-174-770 Cover,winker stay |
33425-174-770 |
from US $4.37 |
||
|
5
|
5
33441-465-710
Stay,fr.winker
|
33441-465-710 |
— | ||
|
6
|
6
33450-165-600
Winker assy.,l.fr
|
33450-165-600 |
— | ||
|
7
|
7
33451-165-600
Base comp.,l.wink
|
33451-165-600 |
— | ||
|
8
|
8
33600-165-600
Winker assy.,r.rr
|
33600-165-600 |
— | ||
|
9
|
9
33601-GC2-741
Base comp.
|
33601-GC2-741 |
— | ||
|
10
|
10
33602-GC5-612 Lens winker |
33602-GC5-612 |
US $10.18 |
||
|
11
|
11
33650-165-600
Winker assy.,l.rr
|
33650-165-600 |
— | ||
|
12
|
12
33651-GC2-741
Base comp.
|
33651-GC2-741 |
— | ||
|
13
|
13
34905-KB2-661
Bulb,winker
|
34905-KB2-661 |
— | ||
|
14
|
14
92000-05012-0A BoltHEX., 5X12 |
92000-05012-0A |
from US $0.37 |
||
| replacement | |||||
|
14
|
14
92101-05012-0G Bolt, hex. (5x12) |
92101-05012-0G |
from US $0.37 |
||
|
15
|
15
93700-060-200-G
Screw,oval,6x20
|
93700-060-200-G |
— | ||
|
16
|
16
93901-14480 ScrewTAPPING, 4X16 |
93901-14480 |
US $0.37 |
||
|
17
|
17
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
