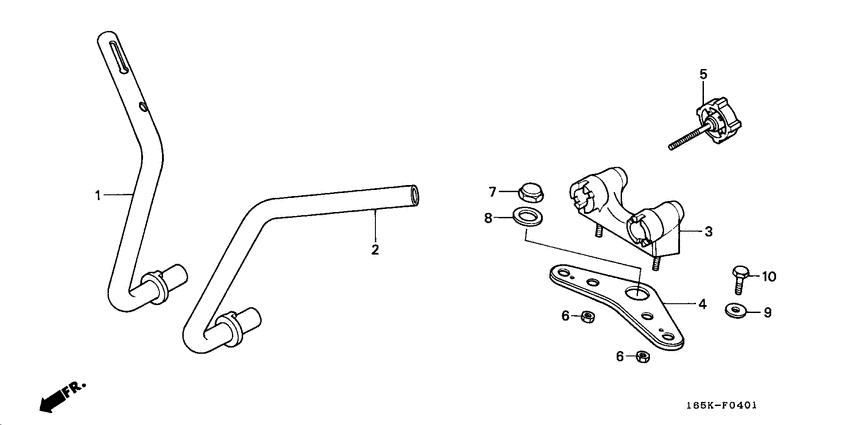

Handle pipe/top bridge (2) Diagram Honda Z50
- Year
- 1992
- Model code
- Z50JN
- Sales region
- Total (km / h)
- Frame
- AB026301729 - AB026302762
- Engine Capacity
- 50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53110-165-640 Pipe,r.steering h |
53110-165-640 |
US $53.99 |
||
|
2
|
2
53120-165-640 Pipe,l.steering h |
53120-165-640 |
US $53.99 |
||
|
3
|
3
53131-165-640 Holder,steering h |
53131-165-640 |
US $90.44 |
||
|
4
|
4
53231-165-640ZA Brige,top*nh-105* |
53231-165-640ZA |
US $25.98 |
||
|
5
|
5
53740-098-970 Knob,handle hold. |
53740-098-970 |
US $10.66 |
||
|
6
|
6
90304-GE8-003 Nut, u, 10mm |
90304-GE8-003 |
from US $1.94 |
||
|
7
|
7
90304-159-000 Nut, steering stem |
90304-159-000 |
from US $6.22 |
||
|
8
|
8
90503-051-870 Washer |
90503-051-870 |
from US $3.18 |
||
|
9
|
9
90527-230-000 Washer, plain, 10.3mm |
90527-230-000 |
from US $2.87 |
||
|
10
|
10
93101-100320B Bolt, hex. (10x32) |
93101-100320B |
from US $0.89 |
