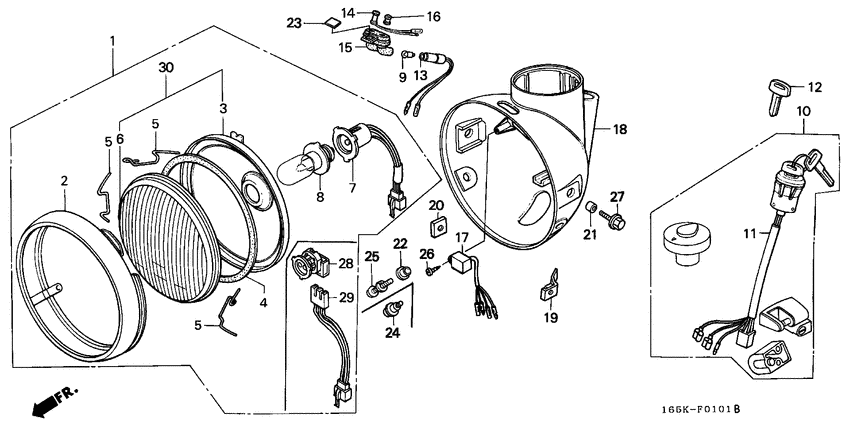

Headlight (2) Diagram Honda Z50
- Year
- 1992
- Model code
- Z50JN
- Sales region
- Total (km / h)
- Frame
- AB026301729 - AB026302762
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-181-921
Light assy.,head
|
33100-181-921 |
— | ||
|
2
|
2
33101-397-000 Rim, head light |
33101-397-000 |
US $34.21 |
||
|
3
|
3
33104-165-003 Refl,headlight |
33104-165-003 |
US $18.36 |
||
|
4
|
4
33105-070-000 Packing head |
33105-070-000 |
US $4.29 |
||
|
5
|
5
33108-229-003 Spring,unitholder |
33108-229-003 |
US $2.66 |
||
|
6
|
6
33121-229-003 Lens,head light |
33121-229-003 |
US $23.26 |
||
|
7
|
7
33130-GY3-003
Socket comp.
|
33130-GY3-003 |
— | ||
|
8
|
8
34901-066-003 Bulb, headlight (stanley) (12v 25/25w) |
34901-066-003 |
from US $4.76 |
||
| replacement | |||||
|
8
|
8
34901-706-000 Bulb (12v25/25w) |
34901-706-000 |
US $8.70 |
||
|
9
|
9
34902-259-000 BulbDASH (12V 3.4W) (STANLEY) |
34902-259-000 |
from US $2.29 |
||
| replacement | |||||
|
9
|
9
34902-259-003 Bulb (12v 3.4w) |
34902-259-003 |
from US $2.11 |
||
|
10
|
10
35010-181-920 Key set |
35010-181-920 |
US $171.79 |
||
|
11
|
11
35100-181-921 Switch assy.,comb |
35100-181-921 |
US $39.58 |
||
|
12
|
12
35121-GZ0-003 Key,blank (no.1) |
35121-GZ0-003 |
from US $9.49 |
||
|
12
|
12
35122-GZ0-003 Key,blank (no.2) |
35122-GZ0-003 |
from US $9.03 |
||
|
13
|
13
37226-165-672 Socket,neutral pi |
37226-165-672 |
US $9.77 |
||
|
14
|
14
37230-165-670 Led indicator |
37230-165-670 |
US $22.58 |
||
|
15
|
15
37550-181-920 Grommet pilot lam |
37550-181-920 |
US $6.36 |
||
|
16
|
16
37561-165-672 Lens,neutral pilo |
37561-165-672 |
US $6.81 |
||
|
17
|
17
37565-181-921
Speed warning uni
|
37565-181-921 |
— | ||
|
18
|
18
61301-165-670ZF
Case,hea*pb118cu*
|
61301-165-670ZF |
— | ||
|
19
|
19
61303-165-980 Nut head light ca |
61303-165-980 |
US $3.70 |
||
|
20
|
20
61304-165-013 Nut, headlight setting |
61304-165-013 |
from US $3.26 |
||
|
21
|
21
61304-165-980 Collar,h/l set |
61304-165-980 |
US $1.92 |
||
|
22
|
22
61304-292-000 Collar- 6301725 |
61304-292-000 |
from US $3.40 |
||
|
23
|
23
87122-GT4-710 Mark,wing |
87122-GT4-710 |
US $5.18 |
||
|
24
|
24
91508-GN2-000 Screw, pan, 5x10.56301726 - |
91508-GN2-000 |
from US $2.15 |
||
|
25
|
25
93892-0501600 Screw-washer, 5x16- 6301725 |
93892-0501600 |
from US $0.44 |
||
|
26
|
26
93901-24420 ScrewTAPPING, 4X16 |
93901-24420 |
from US $0.37 |
||
|
27
|
27
95701-0801800 Bolt, flange, 8x18 |
95701-0801800 |
from US $0.59 |
||
