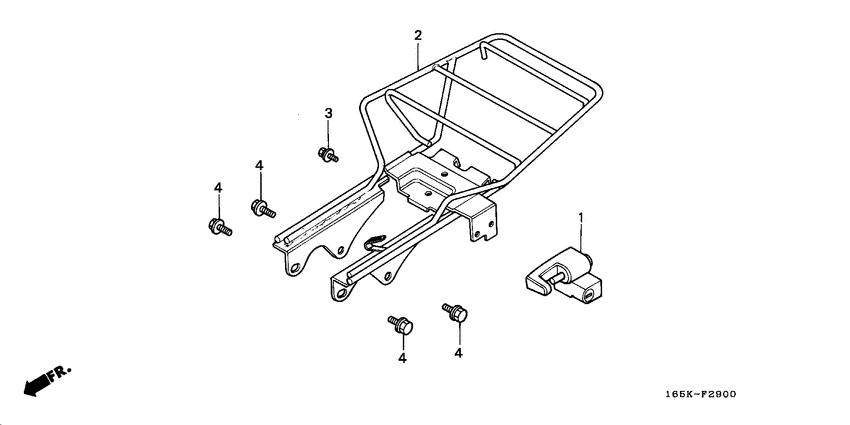

Luggage carrier Diagram Honda Z50
- Year
- 1992
- Model code
- Z50JN
- Sales region
- Total (km / h)
- Frame
- AB026301729 - AB026302762
- Engine Capacity
- 50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50710-GB4-007 Holder assy., helmet |
50710-GB4-007 |
from US $35.22 |
||
|
2
|
2
81200-165-640 Carrier comp.,lug |
81200-165-640 |
US $90.44 |
||
|
3
|
3
93412-060-100-0 Bolt-washer,6x10 |
93412-060-100-0 |
from US $0.52 |
||
| replacement | |||||
|
3
|
3
93402-060-100-0 Bolt-washer (6x10) |
93402-060-100-0 |
from US $0.52 |
||
|
4
|
4
95701-080-140-0 BoltFLANGE, 8X14 |
95701-080-140-0 |
from US $0.59 |
||
