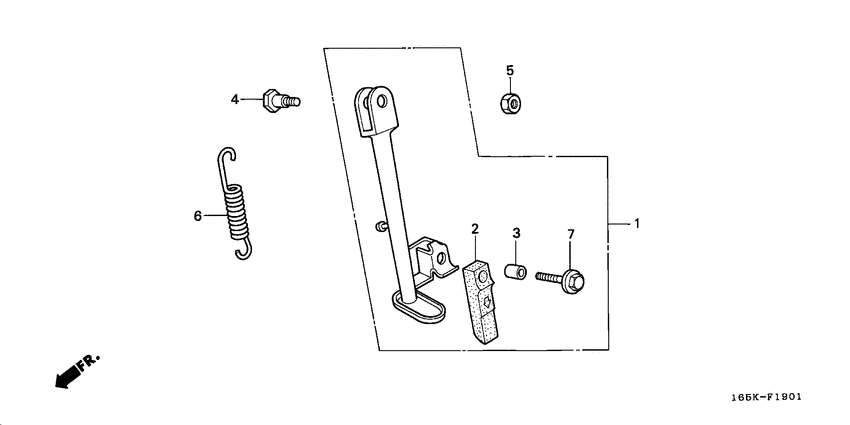

Stand (2) Diagram Honda Z50
- Year
- 1992
- Model code
- Z50JN
- Sales region
- Total (km / h)
- Frame
- AB026301729 - AB026302762
- Engine Capacity
- 50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50540-165-640 Bar assy.,side st |
50540-165-640 |
US $57.16 |
||
|
2
|
2
50548-324-760 Rubber, stand |
50548-324-760 |
from US $7.40 |
||
|
3
|
3
50549-356-700 Collar |
50549-356-700 |
from US $2.96 |
||
|
4
|
4
90105-KT7-000 Bolt |
90105-KT7-000 |
US $6.36 |
||
|
5
|
5
90304-VM0-770 Nut, u, 10mm |
90304-VM0-770 |
from US $3.92 |
||
|
6
|
6
9501472102 Spring a, side stand |
9501472102 |
from US $1.08 |
||
|
7
|
7
95701-060-250-7 BoltFLANGE, 6X25 |
95701-060-250-7 |
from US $0.59 |
