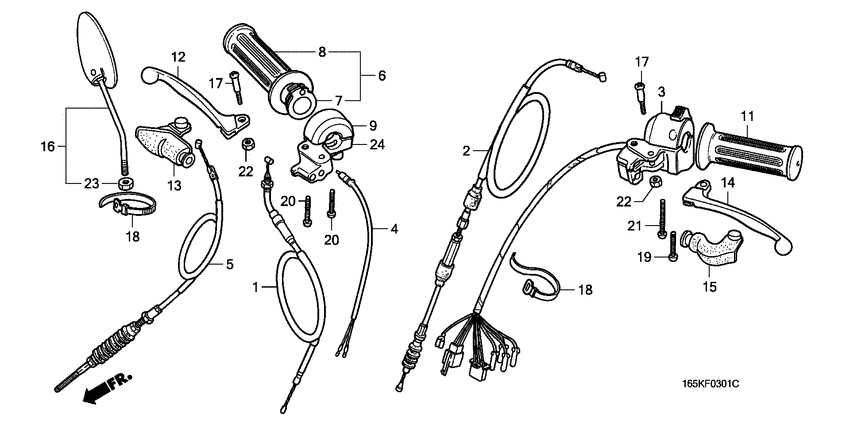

Switch/handle/lever/ cable (2) Diagram Honda Z50
- Year
- 1992
- Model code
- Z50JN
- Sales region
- Total (km / h)
- Frame
- AB026301729 - AB026302762
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-165-640
Cable comp.,throt
|
17910-165-640 |
— | ||
|
2
|
2
22870-165-640 Cable comp.,clutc |
22870-165-640 |
US $23.39 |
||
|
3
|
3
35200-181-920
Sw.assy.,winker
|
35200-181-920 |
— | ||
|
4
|
4
35340-KY0-980 Sw assy,fr stop |
35340-KY0-980 |
US $12.28 |
||
|
5
|
5
45450-165-640 Cable comp,fr.brk |
45450-165-640 |
US $36.86 |
||
|
7
|
7
53141-GC8-000 Pipe,throt.grip |
53141-GC8-000 |
US $7.99 |
||
|
8
|
8
53167-GW0-305 Grip set,r.handle |
53167-GW0-305 |
US $9.32 |
||
|
9
|
9
53167-125-772 Housing,up.throt. |
53167-125-772 |
US $13.87 |
||
|
11
|
11
53168-GW0-305 Grip set,l.handle |
53168-GW0-305 |
US $10.11 |
||
|
12
|
12
53175-165-980 Lever, r. handlebar |
53175-165-980 |
from US $12.14 |
||
|
13
|
13
53176-170-700 Cover, r |
53176-170-700 |
from US $4.88 |
||
|
14
|
14
53178-165-980 Lever l strg.hand |
53178-165-980 |
US $12.73 |
||
|
15
|
15
53179-170-700 Cover, l |
53179-170-700 |
from US $12.50 |
||
|
16
|
16
88110-GN2-000 Mirror assy.,back |
88110-GN2-000 |
US $24.29 |
||
| replacement | |||||
|
16
|
16
88210-GBJ-505 Mirror comp |
88210-GBJ-505 |
US $26.71 |
||
|
17
|
17
90115-170-700 Screw |
90115-170-700 |
from US $3.11 |
||
|
18
|
18
90650-KV6-003 BandWIRE, 95MM |
90650-KV6-003 |
from US $3.03 |
||
|
19
|
19
93500-050-250-A ScrewPAN, 5X25 |
93500-050-250-A |
from US $0.44 |
||
|
20
|
20
93500-050-280-A ScrewPAN, 5X28 |
93500-050-280-A |
from US $0.44 |
||
|
21
|
21
93500-050320A Screw, pan, 5x32 |
93500-050320A |
from US $0.44 |
||
|
22
|
22
94001-050-000-S NutHEX., 5MM |
94001-050-000-S |
from US $0.37 |
||
|
23
|
23
94001-080-200-S Nut,hex 8m/m |
94001-080-200-S |
from US $0.52 |
||
|
24
|
24
53168-GF0-020 HousingUNDER THROTTLE |
53168-GF0-020 |
US $22.26 |
||
