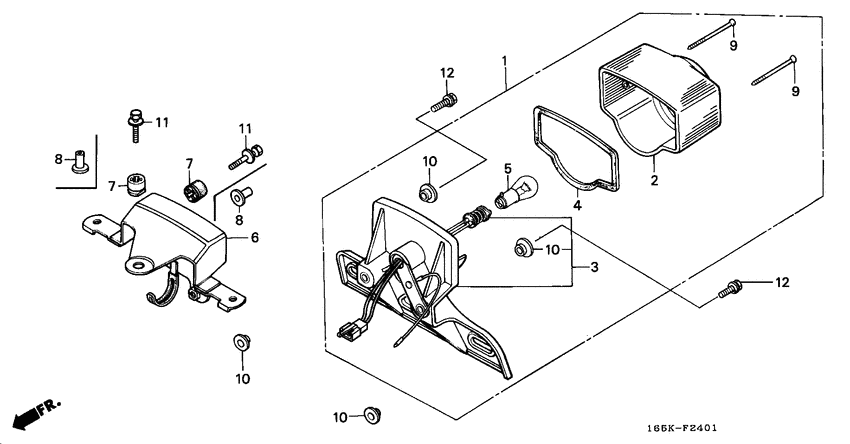

Taillight (2) Diagram Honda Z50
- Year
- 1992
- Model code
- Z50JN
- Sales region
- Total (km / h)
- Frame
- AB026301729 - AB026302762
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33701-181-921 Unit.,tail light |
33701-181-921 |
US $48.55 |
||
|
2
|
2
33702-163-003 Lens,taillight |
33702-163-003 |
US $18.22 |
||
|
3
|
3
33705-181-921 Base comp.(2),tai |
33705-181-921 |
US $27.61 |
||
|
4
|
4
33709-163-003 Packing,t-lt lens |
33709-163-003 |
US $3.18 |
||
|
5
|
5
34906-GK8-701 Bulb,taillight |
34906-GK8-701 |
US $4.88 |
||
|
6
|
6
84701-165-000 Bracket,taillight |
84701-165-000 |
US $29.38 |
||
|
7
|
7
84905-333-000 Rubber, fender |
84905-333-000 |
from US $4.44 |
||
|
8
|
8
50324-425-010 Collar (6.3x13)- 6301725 |
50324-425-010 |
from US $4 |
||
|
8
|
8
90502-KS5-000 Collar19x6.2x13.56301726 - |
90502-KS5-000 |
from US $2.96 |
||
|
9
|
9
90107-163-003 Screw,tap.,3x42 |
90107-163-003 |
US $2.66 |
||
|
10
|
10
90522-028-000 Washer, chain case setting |
90522-028-000 |
from US $1.92 |
||
|
11
|
11
93404-0602500 Bolt-washer, 6x25- 6301725 |
93404-0602500 |
from US $0.62 |
||
|
11
|
11
93404-060-250-7 Bolt-washer6X25 6301726 - |
93404-060-250-7 |
from US $0.59 |
||
|
12
|
12
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
