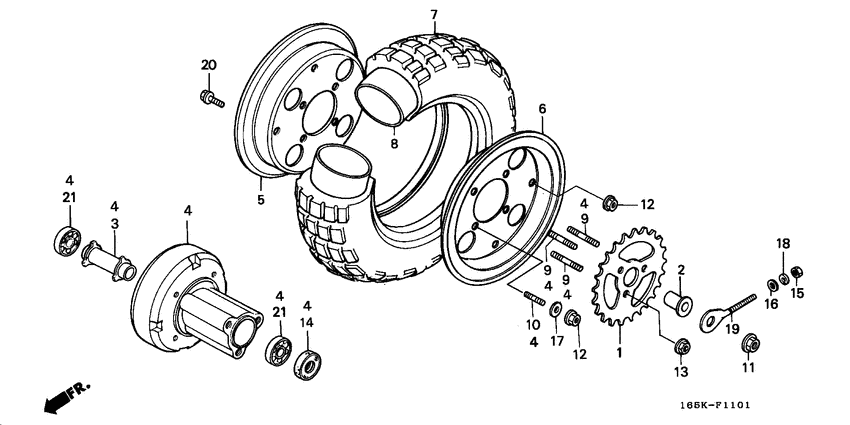

Rear wheel (Z50JN/JP/JT) Diagram Honda Z50
- Year
- 1996
- Model code
- Z50JT
- Sales region
- Finland
- Frame
- JH2AB02A*TK000001 - JH2AB02A*TK001220
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41201-181-950
Sprocket,final dr
|
41201-181-950 |
— | ||
|
2
|
2
42312-120-000 Collar, l. rr. |
42312-120-000 |
from US $4.44 |
||
|
3
|
3
42620-045-020 Collar,reardistan |
42620-045-020 |
US $10.21 |
||
|
4
|
4
42650-181-405ZC Hub set,rr*nh35m* |
42650-181-405ZC |
US $175.44 |
||
|
5
|
5
42701-045-671ZA Rim,r.whee*nh35m* |
42701-045-671ZA |
US $27.34 |
||
|
6
|
6
42702-045-671ZA Rim,l.whee*nh35m* |
42702-045-671ZA |
from US $27.34 |
||
|
7
|
7
42711-165-013
Tire,wheel
|
42711-165-013 |
— | ||
|
8
|
8
44712-120-154 Tube, tire (3.50-8) |
44712-120-154 |
US $25.59 |
||
| replacement | |||||
|
8
|
8
42712-GC3-004 Tube, tire (3.00-8) |
42712-GC3-004 |
US $26.40 |
||
|
9
|
9
90125-120-020 Bolt, stud (8x45) |
90125-120-020 |
from US $5.62 |
||
|
10
|
10
90125-181-950 Bolt,stud,8x17 |
90125-181-950 |
US $3.48 |
||
|
11
|
11
90306-KF0-003 Nut, flange, 12mm |
90306-KF0-003 |
from US $3.26 |
||
|
12
|
12
90309-KF0-003 Nut, flange, 8mm |
90309-KF0-003 |
from US $3.18 |
||
| replacement | |||||
|
12
|
12
90309-428-731 Nut, flange (self-lock) (m8x1.25) |
90309-428-731 |
from US $4.29 |
||
|
13
|
13
90309-ML3-791 Nut, u, 8mm (fuse rashi) |
90309-ML3-791 |
from US $4.07 |
||
|
14
|
14
91251-045-005 Oil seal (18x32x8) |
91251-045-005 |
from US $4.59 |
||
|
15
|
15
94001-060-000-S
Nut
|
94001-060-000-S |
— | ||
| replacement | |||||
|
15
|
15
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
16
|
16
94101-06000 WasherPLAIN, 6MM |
94101-06000 |
from US $0.37 |
||
| replacement | |||||
|
16
|
16
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
17
|
17
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
18
|
18
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
19
|
19
9501410010 Adjuster s, r. chain |
9501410010 |
from US $1.63 |
||
|
20
|
20
95701-0801600 Bolt, flange, 8x16 |
95701-0801600 |
from US $0.62 |
||
|
21
|
21
96140-6201010 Bearing (6201u) |
96140-6201010 |
from US $5.77 |
||
