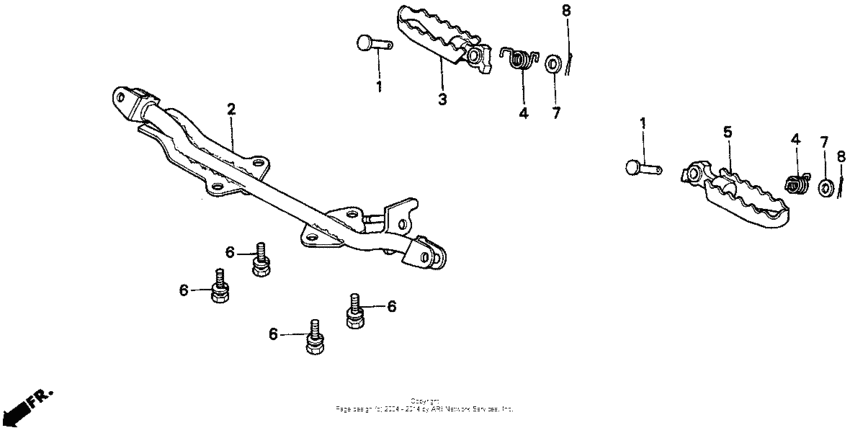

Step Diagram Honda Z50
- Year
- 1997
- Model code
- Z50R A
- Sales region
- USA
- Frame
- JH2AB020*VK600001 - JH2AB020*VK604319
- Engine Capacity
- 50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50603-GN1-761 Pin, step bar joint |
50603-GN1-761 |
US $3.09 |
||
| replacement | |||||
|
1
|
1
50603-033-010 Pin, step bar joint |
50603-033-010 |
from US $3.70 |
||
|
2
|
2
50610-GCF-A20
Bar, step
|
50610-GCF-A20 |
— | ||
|
3
|
3
50616-181-770 Arm, r. step |
50616-181-770 |
from US $21.49 |
||
|
4
|
4
50617-181-770 Spring, step return |
50617-181-770 |
from US $4.66 |
||
|
5
|
5
50642-181-770 Step, l. |
50642-181-770 |
from US $24.71 |
||
|
6
|
6
93402-0802000 Bolt-washer (8x20) |
93402-0802000 |
from US $0.67 |
||
|
7
|
7
94102-08700 WasherPLAIN, 8MM |
94102-08700 |
from US $0.37 |
||
|
8
|
8
94201-20150 Pin |
94201-20150 |
from US $0.37 |
||
