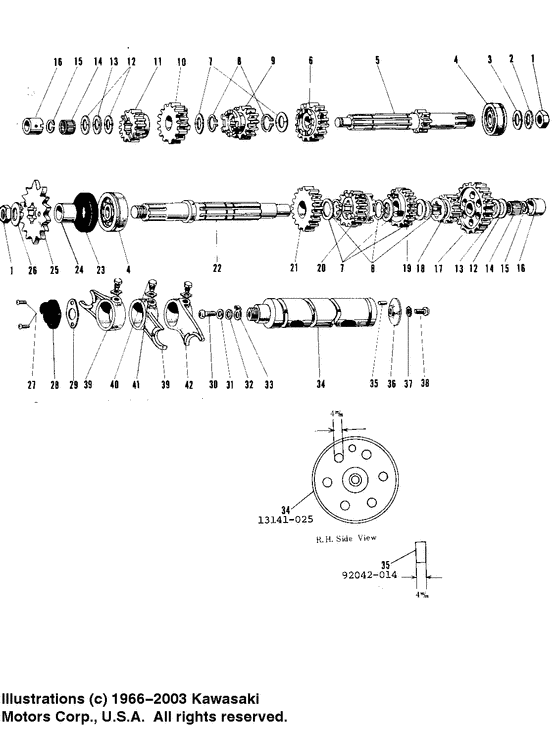

Transmission Diagram Kawasaki A1 Samurai
- Year
- 1969
- Model code
- A1
- Sales region
- USA
- Engine Capacity
- 250
- Model
- A1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
13140-004
Selector fork low
|
13140-004 |
— | ||
| replacement | |||||
|
|
13140-014
FORK-SELECTOR,LOW
|
13140-014 |
— | ||
|
1
|
1
92015-019 NUT 18MMNut 18mm; |
92015-019 |
from US $4.80 |
||
|
2
|
2
463G1800
WASHER LOCK 18MM
|
463G1800 |
— | ||
|
3
|
3
92022-074
WASHER PL 19X36.5X0.8
|
92022-074 |
— | ||
|
4
|
4
92045-020
BALL BEARING 6305N
|
92045-020 |
— | ||
|
5
|
5
13127-012 SHAFT DRIVE14t |
13127-012 |
US $124.52 |
||
|
6
|
6
13136-017 TOP GEAR DRIVE SHAFT27t |
13136-017 |
US $44.50 |
||
|
7
|
7
92022-076
WASHER 25MM
|
92022-076 |
— | ||
| replacement | |||||
|
7
|
7
92022-161 WASHER PLAIN |
92022-161 |
from US $6.65 |
||
|
8
|
8
92033-026 CIRCLIPCirclip; |
92033-026 |
from US $6.72 |
||
|
9
|
9
13132-009 3RD GEAR DRIVE SHAFT23t |
13132-009 |
US $38.99 |
||
|
10
|
10
13134-003 4TH GEAR DRIVE SHAFT25t |
13134-003 |
US $96.30 |
||
|
11
|
11
13130-008 2ND GEAR DRIVE SHAFT19t |
13130-008 |
US $24.64 |
||
|
12
|
12
92022-075 WASHER 17MM |
92022-075 |
US $6.80 |
||
|
13
|
13
92026-021 WASHER THRUST |
92026-021 |
US $9.97 |
||
|
14
|
14
92046-005 BEARING NEEDLE |
92046-005 |
US $14.13 |
||
|
15
|
15
92033-009 CIRCLIP 17MM |
92033-009 |
US $2.66 |
||
|
16
|
16
92028-043 BUSH TRANSMMISION SFT |
92028-043 |
US $29.18 |
||
|
17
|
17
13129-014 LOW GEAR OUTPUT SHAFT35t |
13129-014 |
US $55.26 |
||
|
18
|
18
13137-007 TOP GEAR OUTPUT SHAFT21t |
13137-007 |
US $58.12 |
||
|
19
|
19
13133-007 3RD GEAR OUTPUT SHAFT26t |
13133-007 |
US $33.07 |
||
|
20
|
20
13135-003 4TH GEAR OUTPUT SHAFT23t |
13135-003 |
US $55.26 |
||
|
21
|
21
13131-010 2ND GEAR OUTPUT SHAFT29t |
13131-010 |
US $42.25 |
||
|
22
|
22
13128-013 SHAFT OUTPUT |
13128-013 |
US $105.10 |
||
|
23
|
23
92050-016 OIL SEAL SC326210 |
92050-016 |
US $20.12 |
||
|
24
|
24
92026-1024
SPACER-ENG SPROCKET
|
92026-1024 |
— | ||
|
25
|
25
13144-025
ENGINE SPROCKET 15T
Std, a1, a1ss, (option), std, a7, a7ss, (option) |
13144-025 |
— | ||
|
26
|
26
92024-067
WASHER,LOCK,18MM
Washer,lock,18mm; |
92024-067 |
— | ||
|
27
|
27
220B0516 SCREW-PAN-CROSScrew pan head 5x16; I.s.o. thread |
220B0516 |
from US $1.11 |
||
| replacement | |||||
|
27
|
27
220AA0516 SCREW-PAN-CROSScrew pan head 5x16; I.s.o. thread |
220AA0516 |
from US $0.79 |
||
|
28
|
28
13151-1001 SWITCH,NEUTRALSwitch,neutral; |
13151-1001 |
from US $8.87 |
||
|
29
|
29
13146002 GASKET NEUTRAL SWITCHGasket neutral switch; |
13146002 |
from US $2.95 |
||
|
30
|
30
92011-003
New Genuine Part
|
92011-003 |
— | ||
| replacement | |||||
|
30
|
30
220AA0616 SCREW-PAN-CROS,6X16 |
220AA0616 |
from US $0.95 |
||
|
31
|
31
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
31
|
31
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
32
|
32
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
32
|
32
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
33
|
33
21007-1003 ROTOR,NEUTRAL INDICTRRotor,neutral indictr; |
21007-1003 |
from US $4.51 |
||
|
34
|
34
13141-012 DRUM GEAR CHANGEUse 13141-025, use w/92042-014 |
13141-012 |
US $31.63 |
||
|
35
|
35
92043-004 PIN GEAR CHANGE DRUMUse w/13141-025 |
92043-004 |
US $2.50 |
||
|
36
|
36
13142-004 PLATE CHANGE DRUM PIN |
13142-004 |
US $2.27 |
||
|
37
|
37
464H0600
WASHER LOCK 6MM
|
464H0600 |
— | ||
|
38
|
38
220B0612 Screw-pan head,6x12Screw pan head 6x12; |
220B0612 |
US $1.11 |
||
| replacements | |||||
|
38
|
38
220AA0612 SCREW-PAN-CROSS,6X12Screw pan head 6x12; |
220AA0612 |
from US $0.91 |
||
|
38
|
38
214B0612
Screw-pan+-
Screw pan head 6x12; |
214B0612 |
— | ||
|
39
|
39
13140-013
FORK SELECTOR TOP
|
13140-013 |
— | ||
|
40
|
40
92043-016
PIN SELECT FORK GUIDE
|
92043-016 |
— | ||
|
41
|
41
92031-001 WASHER LOCK 10MM |
92031-001 |
from US $3.43 |
||
|
42
|
42
13140-014
FORK-SELECTOR,LOW
Fork-selector,low; |
13140-014 |
— | ||
