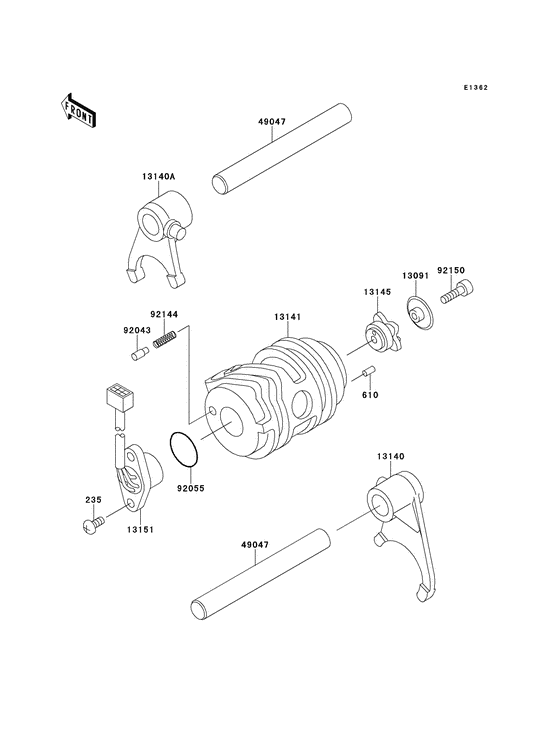

Gear change drum/shift fork Diagram Kawasaki AN110 Kazer
- Year
- 2000
- Model code
- AN110-D2
- Sales region
- USA
- Engine Capacity
- 110
- Model
- AN110
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
235
|
235
235B0514 SCREW-PAN-WP-CROS |
235B0514 |
from US $1.27 |
||
| replacement | |||||
|
235
|
235
235AA0514 SCREW-PAN-WP-CROS |
235AA0514 |
from US $0.95 |
||
|
610
|
610
610A0408 PIN DOWEL 4X8Roller,4x8; |
610A0408 |
from US $1.07 |
||
|
13091
|
13091
13091-1086 HOLDER |
13091-1086 |
from US $4.64 |
||
| replacement | |||||
|
13091
|
13091
13280-1228 HOLDER |
13280-1228 |
from US $4.59 |
||
|
13140
|
13140
13140-1119 FORK-SHIFT,LOW&3RD |
13140-1119 |
US $72.95 |
||
| replacement | |||||
|
13140
|
13140
13140-0058 FORK-SHIFT,LOW&3RD |
13140-0058 |
from US $58.04 |
||
|
13140A
|
13140A
13140-1227 FORK-SHIFT,2ND,4TH,INFork-shift,2nd,4th,in; |
13140-1227 |
from US $59.26 |
||
|
13141
|
13141
13141-1191 DRUM-CHANGE |
13141-1191 |
from US $78.38 |
||
|
13145
|
13145
13145-1081 CAM-CHANGE DRUM |
13145-1081 |
from US $39.79 |
||
|
13151
|
13151
13151-1070 Switch-Comp,NeutralSwitch-comp,neutral; |
13151-1070 |
US $48.51 |
||
| replacement | |||||
|
13151
|
13151
13151-0020 Switch-Comp,NeutralSwitch-comp,neutral; |
13151-0020 |
from US $42.31 |
||
|
49047
|
49047
49047-1058 ROD-SHIFT |
49047-1058 |
from US $8.55 |
||
|
92043
|
92043
92043-1385 PIN |
92043-1385 |
from US $3.64 |
||
| replacement | |||||
|
92043
|
92043
92043-0736 PIN |
92043-0736 |
from US $3.64 |
||
|
92055
|
92055
92055-091 O RING,RELEASE PLUG |
92055-091 |
from US $3.48 |
||
|
92144
|
92144
92144-1245 SPRING |
92144-1245 |
from US $3.54 |
||
|
92150
|
92150
92150-1433 BOLT,SOCKET,6X30Bolt,socket,6x30; |
92150-1433 |
from US $3.01 |
||
