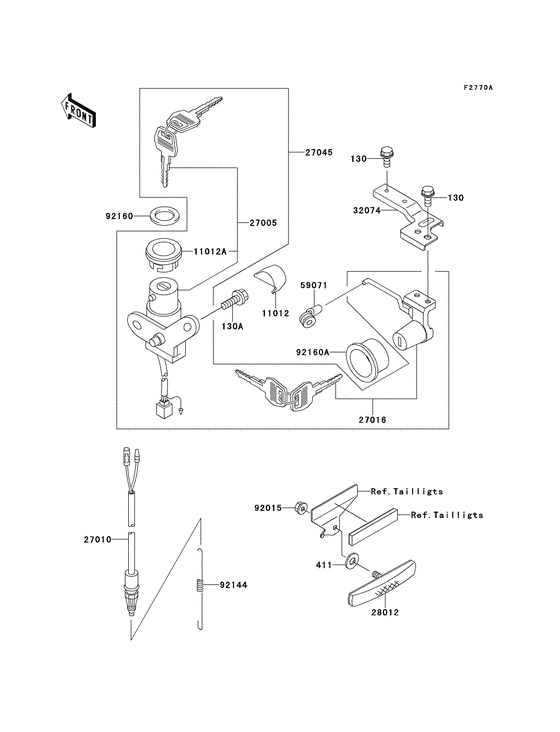

Ignition switch (An110-d3) Diagram Kawasaki AN110 Kazer
- Year
- 2001
- Model code
- AN110-D3
- Sales region
- USA
- Engine Capacity
- 110
- Model
- AN110
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130C0608
BOLT-FLANGED
|
130C0608 |
— | ||
| replacements | |||||
|
130
|
130
130BB0608 BOLT-FLANGED,6X8 |
130BB0608 |
from US $1.11 |
||
|
130
|
130
130AB0608 BOLT-FLANGED |
130AB0608 |
US $4.45 |
||
|
130A
|
130A
130D0614
BOLT-FLANGED,6X14
Bolt-flanged,6x14; |
130D0614 |
— | ||
| replacements | |||||
|
130A
|
130A
130AA0614 BOLT-FLANGEDBolt-flanged,6x14; |
130AA0614 |
from US $0.82 |
||
|
130A
|
130A
130BA0614 BOLT-FLANGED,6X14Bolt-flanged,6x14; |
130BA0614 |
from US $0.79 |
||
|
411
|
411
411B0600 WASHER-PLAIN,6.5X13X1Washer-plain,6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
411
|
411
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer-plain,6mm; |
411AA0600 |
from US $2.13 |
||
|
11012
|
11012
11012-1927 CAP,IGNITION SWITCHCap,ignition switch; |
11012-1927 |
from US $5.28 |
||
|
11012A
|
11012A
11012-1962 CAP,IGNITION SWITCHCap,ignition switch; |
11012-1962 |
from US $5.44 |
||
|
27005
|
27005
27005-1181 SWITCH-ASSY-IGNITION |
27005-1181 |
US $115.65 |
||
|
27010
|
27010
27010-1334 SWITCH |
27010-1334 |
US $19.31 |
||
|
27016
|
27016
27016-5265 LOCK-ASSY,SEATLock-assy,seat; |
27016-5265 |
US $99.77 |
||
|
27045
|
27045
27045-5128 SWITCH-ASSY |
27045-5128 |
US $262.93 |
||
|
28012
|
28012
28012-1081 Reflector-reflex |
28012-1081 |
US $12.74 |
||
|
32074
|
32074
32074-1173 BRACKET-LOCK,SEATBracket-lock,seat; |
32074-1173 |
US $4.37 |
||
|
59071
|
59071
59071-1125 JOINT |
59071-1125 |
from US $6.65 |
||
|
92015
|
92015
92015-1193
NUT,FLANGED,6MM
Nut,flanged,6mm; |
92015-1193 |
— | ||
| replacement | |||||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MMNut,flanged,6mm; |
92015-1367 |
from US $3.01 |
||
|
92144
|
92144
92144-1859 SPRING,BRAKE LAMP SWISpring,brake lamp switch; |
92144-1859 |
US $2.79 |
||
|
92160
|
92160
92160-1612 DAMPER,IGNITION SWITCDamper,ignition switch cap; |
92160-1612 |
US $2.79 |
||
|
92160A
|
92160A
92160-1828 DAMPER |
92160-1828 |
US $1.85 |
||
