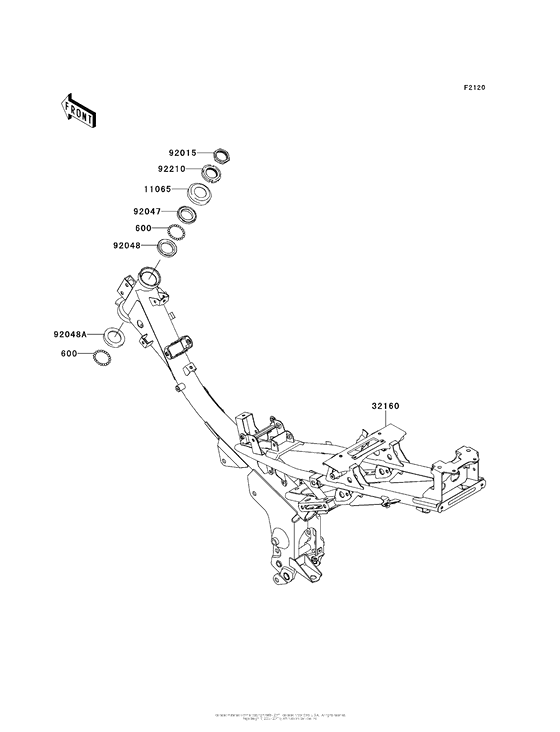

Frame Diagram Kawasaki AN112 Edge VR
- Year
- 2012
- Model code
- AN112SCF
- Sales region
- USA
- Engine Capacity
- 112
- Model
- Edge VR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
600
|
600
600A0800 BALL,6.35MM |
600A0800 |
from US $0.82 |
||
|
11065
|
11065
11065-0352 CAP,STEERING STEM |
11065-0352 |
from US $0.68 |
||
|
32160
|
32160
32160-0609 FRAME-COMP |
32160-0609 |
US $654.44 |
||
|
92015
|
92015
92015-1901 NUT,30MM |
92015-1901 |
from US $4.98 |
||
|
92047
|
92047
92047-011 CONE,STRNG STM BRNG |
92047-011 |
US $12.36 |
||
| replacement | |||||
|
92047
|
92047
92048-0032 Race,steering Stem Be |
92048-0032 |
from US $12.36 |
||
|
92048
|
92048
92048-006
RACE STRNG STEM BERNG
|
92048-006 |
— | ||
| replacement | |||||
|
92048
|
92048
92048-0036 Race,steering Stem Be |
92048-0036 |
from US $9.35 |
||
|
92048A
|
92048A
92048-008 RACE,STRNG STM BRNG |
92048-008 |
US $13.62 |
||
| replacement | |||||
|
92048A
|
92048A
92048-0037 Race,steering Stem Be |
92048-0037 |
from US $13.62 |
||
|
92210
|
92210
92210-1378 NUT,STEERING STEM,30M |
92210-1378 |
US $19.09 |
||
