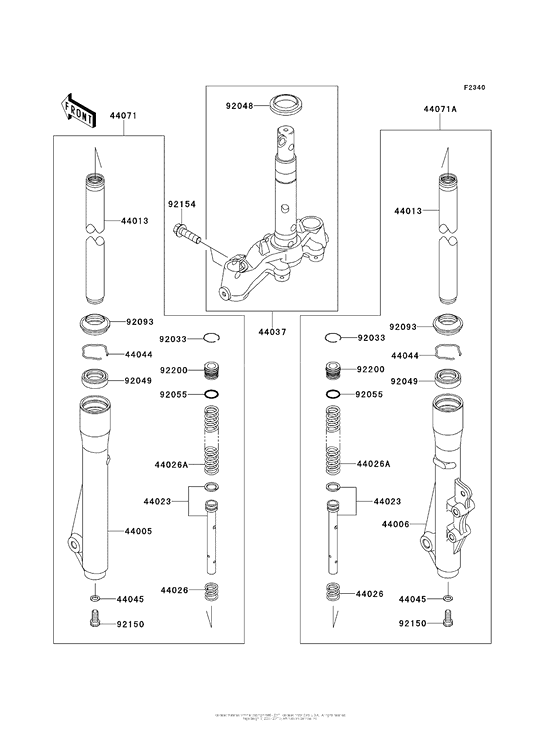

Front Fork Diagram Kawasaki AN112 Edge VR
- Year
- 2012
- Model code
- AN112SCF
- Sales region
- USA
- Engine Capacity
- 112
- Model
- Edge VR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44005
|
44005
44005-0054-458 PIPE-LEFT FORK OUTER, |
44005-0054-458 |
from US $186.62 |
||
|
44006
|
44006
44006-0053-458 PIPE-RIGHT FORK OUTER |
44006-0053-458 |
from US $186.62 |
||
|
44013
|
44013
44013-0211 PIPE-FORK INNER |
44013-0211 |
from US $55.05 |
||
|
44023
|
44023
44023-0101 CYLINDER-SET-FORK |
44023-0101 |
from US $54.68 |
||
|
44026
|
44026
44026-0150 SPRING-FRONT FORK |
44026-0150 |
from US $6.91 |
||
|
44026A
|
44026A
44026-0172 SPRING-FRONT FORK |
44026-0172 |
from US $10.08 |
||
|
44037
|
44037
44037-0103 Holder-fork under |
44037-0103 |
from US $253.81 |
||
|
44044
|
44044
44044-020 RING-SNAP,45MM |
44044-020 |
from US $8.87 |
||
|
44045
|
44045
44045051 GASKET,FORK CYL BOLT |
44045051 |
from US $4.59 |
||
|
44071
|
44071
44071-0786-458 DAMPER-ASSY,LH,P.SILV |
44071-0786-458 |
from US $391.91 |
||
|
44071A
|
44071A
44071-0797-458 DAMPER-ASSY,RH,P.SILV |
44071-0797-458 |
from US $391.91 |
||
|
92033
|
92033
92033-1328 RING-SNAP |
92033-1328 |
from US $0.14 |
||
|
92048
|
92048
92048-1119 RACE,STEERING STEM BE |
92048-1119 |
from US $8.55 |
||
|
92049
|
92049
92049-0728 SEAL-OIL |
92049-0728 |
from US $8.87 |
||
|
92055
|
92055
92055-1675 RING-O |
92055-1675 |
from US $0.14 |
||
|
92093
|
92093
92093-1559 SEAL,FORK OUTER TUBE |
92093-1559 |
from US $1.91 |
||
|
92150
|
92150
92150-1432 Bolt |
92150-1432 |
from US $6.34 |
||
|
92154
|
92154
92154-0353 BOLT,FLANGED,10X35 |
92154-0353 |
from US $2.79 |
||
|
92200
|
92200
92200-1612 WASHER |
92200-1612 |
from US $2.02 |
