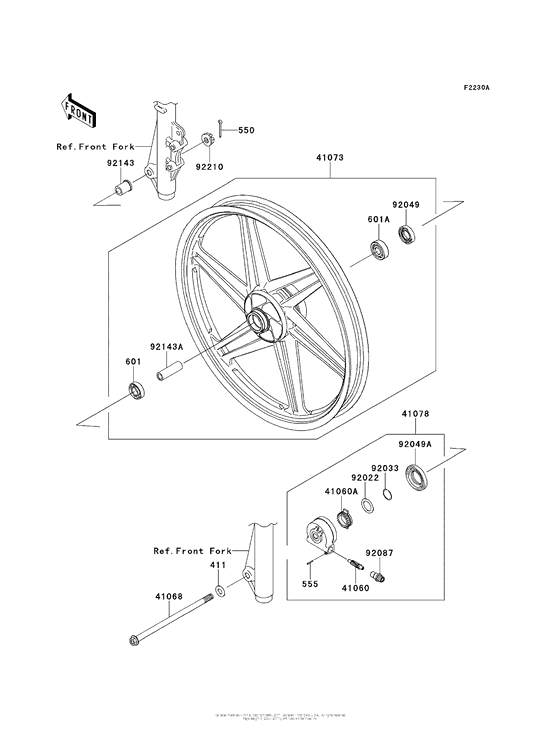

Front Hub (Scf) Diagram Kawasaki AN112 Edge VR
- Year
- 2012
- Model code
- AN112SCF
- Sales region
- USA
- Engine Capacity
- 112
- Model
- Edge VR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
411
|
411
411AA1000 WASHER-PLAIN,10MM |
411AA1000 |
from US $0.72 |
||
|
550
|
550
550AA2525 PIN-COTTER,2.5X25 |
550AA2525 |
from US $0.63 |
||
|
555
|
555
555A0214 PIN-SPRING |
555A0214 |
from US $0.40 |
||
|
601
|
601
601B6200UG Bearing-ball#6200UG |
601B6200UG |
US $8.87 |
||
|
601A
|
601A
601B6300UG BEARING-BALL |
601B6300UG |
from US $10.28 |
||
|
41060
|
41060
41060-0571 GEAR-METER SCREW,10T |
41060-0571 |
from US $21.08 |
||
|
41060A
|
41060A
41060-0572 GEAR-METER SCREW,25T |
41060-0572 |
from US $21.08 |
||
|
41068
|
41068
41068-1362 AXLE,FR |
41068-1362 |
US $41.29 |
||
|
41073
|
41073
41073-0569-21V WHEEL-ASSY,FR,G.BLACK |
41073-0569-21V |
from US $352.71 |
||
|
41078
|
41078
41078-0054 CASE-ASSY-METER GEAR |
41078-0054 |
from US $65.13 |
||
|
92022
|
92022
92022-1510 WASHER,20X29X1.0 |
92022-1510 |
from US $2.85 |
||
|
92033
|
92033
92033-1160 RING-SNAP,19MM |
92033-1160 |
from US $2.85 |
||
|
92049
|
92049
92049-0052 SEAL-OIL,DD20X35X7 |
92049-0052 |
from US $10.61 |
||
|
92049A
|
92049A
92049-0717 SEAL-OIL |
92049-0717 |
from US $9.79 |
||
| replacement | |||||
|
92049A
|
92049A
92049-0042 SEAL-OIL,SD 42X50X6 |
92049-0042 |
US $18.14 |
||
|
92087
|
92087
92087-0002 BUSHING-METER GEAR |
92087-0002 |
US $17.55 |
||
|
92143
|
92143
92143-1847 COLLAR |
92143-1847 |
US $11.90 |
||
|
92143A
|
92143A
92143-1992 COLLAR,FR HUB,L=51 |
92143-1992 |
US $10.24 |
||
|
92210
|
92210
92210-1093 NUT,CASTLE,10MM |
92210-1093 |
from US $3.57 |
||
